Search found 104 matches

by EddieTavares
22 Jul 2020, 17:30
Forum: Pedal Debugging & Troubleshooting Support
Topic: Automatic volume control after POD
Replies: 3
Views: 181

Re: Automatic volume control after POD

What about a limiter? It would give you some dinamics before reach the limit.

viewtopic.php?f=13&t=1043
by EddieTavares
24 Jun 2020, 01:42
Forum: Modern Stompbox Effects (1975 - ...)
Topic: T-Rex - Hobo Drive [schematic]
Replies: 12
Views: 1217

Re: T-Rex Hobo Drive [schematic]

okgb wrote:
12 Jun 2020, 17:33
What does it look like a derivative of ?
Fulltone OCD without lp/hp switch and half gain.
by EddieTavares
23 Jun 2020, 13:58
Forum: Amplifiers
Topic: Peavey Triple XXX and the evil Tone-Stack
Replies: 1
Views: 1713

Re: Peavey Triple XXX and the evil Tone-Stack

95H First I suggest you to use a tubescreamer or another overdrive in the dirt channels, usually it give better dirt tones. If you did but it was not enough, I suggest you to remove C8, the capacitor that bypasses R10 to reduce the gain and brightness. If it isn't enough you can reduce r21 and r17 b...
by EddieTavares
31 Mar 2020, 23:21
Forum: DIY Stompbox designs
Topic: The Beatdown: A True MIAB
Replies: 12
Views: 1675

Re: The Beatdown: A True MIAB

Ripthorn It sounds really amazing! When I tried to breadboard some guitar preamps I never get close to the tone of that as real preamps connected direct to the power amp when i connect it in another preamp tube or SS, It sounds a little better when I change the tonestack to baxandall or big muff sty...
by EddieTavares
17 Feb 2020, 10:59
Forum: Pimp-My-Cheap-Pedal
Topic: More volume on BBE Green Screamer
Replies: 2
Views: 437

Re: More volume on BBE Green Screamer

You can increase a little by increasing VR3 to 100k or 1M but if you want much more volume you have to implement one booster between C9 and VR3.
by EddieTavares
21 Jan 2020, 18:50
Forum: Boutique Stompboxes dissected...
Topic: Rainger FX - Minibar
Replies: 8
Views: 934

Re: Rainger FX - Minibar

Is it possible to be a Expandora based circuit?
by EddieTavares
21 Jan 2020, 18:46
Forum: Boutique Stompboxes dissected...
Topic: Rainger FX - Minibar
Replies: 8
Views: 934

Re: Rainger FX - Minibar

FuzzMonkey wrote:What would you use to get the 'Brown Sound'?
chorume!
by EddieTavares
13 Jan 2020, 16:58
Forum: Boutique Stompboxes dissected...
Topic: Solo Dallas - SVDS Replica [traced]
Replies: 165
Views: 57904

Re: Solo Dallas - SVDS Replica [traced]

madras, Great job!!!

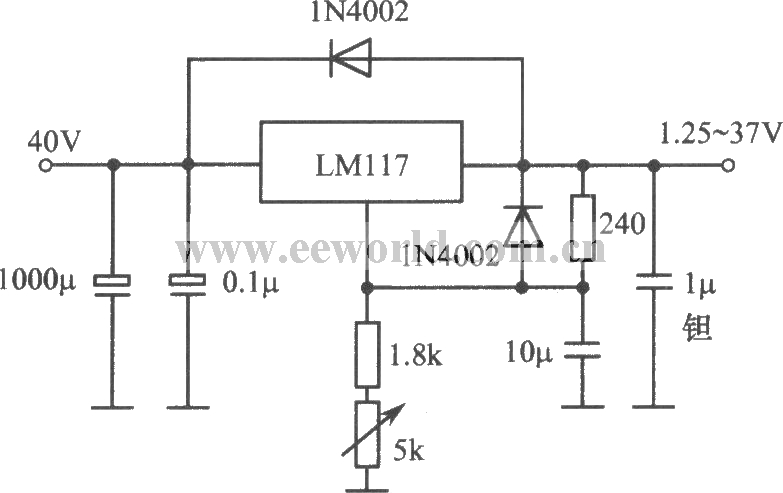

There is some components in that circuit that does not affect the tone like l1, LM117, D1, D2, C34, R14, R15, C27, C31, C32, the LM380 does a little overdrive but is almost irrelevant.
by EddieTavares
21 Oct 2019, 19:04
Forum: Modern Stompbox Effects (1975 - ...)
Topic: SoloDallas - Storm
Replies: 26
Views: 8568

Re: SoloDallas - Storm

It's a modified Flatline Compressor Very similar, although SoloDallas says that they traced the optical portion from part of the original SVDS which would have been 1976. Not sure whether or how much this portion of the circuit was adapted for pedal use, but optical compressors go back to the 1950s...
by EddieTavares
21 Oct 2019, 12:44
Forum: Modern Stompbox Effects (1975 - ...)
Topic: SoloDallas - Storm
Replies: 26
Views: 8568

Re: SoloDallas - Storm

It's a modified Flatline Compressor;

by EddieTavares
15 Aug 2019, 13:40
Forum: DIY Stompbox designs
Topic: Easy Vibe Optocoupler
Replies: 1
Views: 1227

Re: Easy Vibe Optocoupler

spoontex The short answer is a flashing yes! We usually prefer a combo led + ldr because it is cheaper them its rich cousin and there is no considerable tone differences IN A EASYVIBE. Optocouplers NSL32 are led/ldr combos but they are "matched", they have closer characteristics if you compare an NS...
by EddieTavares
10 Jul 2019, 14:34
Forum: Electric Guitar Rewiring
Topic: Baja Active EMG Schematic
Replies: 6
Views: 3849

Re: Baja Active EMG Schematic

Yes, it'll work perfectly! An option something better is to use an schottky diode, anyone. There is a little voltage drop (aprox. 0,6v) when 1N4148 is used in this way, it does not affect your tone when the battery is fully charged. Another good Idea is to use it in parallel as it is used in pedals.
by EddieTavares
09 Jul 2019, 12:17
Forum: Electric Guitar Rewiring
Topic: Baja Active EMG Schematic
Replies: 6
Views: 3849

Re: Baja Active EMG Schematic

Rauch

This diode does nothing to the signal, it is only reverse power flow protection so you can use anyone.
by EddieTavares
14 Apr 2019, 13:48
Forum: Boutique Stompboxes dissected...
Topic: Solo Dallas - SVDS Replica [traced]
Replies: 165
Views: 57904

Re: Solo Dallas - SVDS Replica [traced]

This is a "cosmetic feature" trying to keep the same circuit of the original circuit.
by EddieTavares
14 Apr 2019, 00:28
Forum: Boutique Stompboxes dissected...
Topic: Solo Dallas - SVDS Replica [traced]
Replies: 165
Views: 57904

Re: Solo Dallas - SVDS Replica [traced]

Those diodes are just for protection and the l1 is used to avoid noise from the power supply.

by EddieTavares
28 Jan 2019, 21:18
Forum: Ready-To-Build Effect Projects
Topic: BAJA REACTOR 010119 [verified]
Replies: 46
Views: 3472

Re: BAJA REACTOR 010119 [verified]

Bajaman

As your circuit has clipping diodes, does it simulate "sag" of a power amp at loud volumes?
by EddieTavares
27 Dec 2018, 01:53
Forum: Boutique Stompboxes dissected...
Topic: ISP Decimator II
Replies: 6
Views: 2174

Re: ISP Decimator II

Great job caspercody I cloned the older version, something that looks strange for me in the schematic below is that the gate of the fet 2N5484 (pin 3) should be connected to R30 and the remaining terminal to r22 as the earlier decimator, if there is a little noise when you s a diode between r30 and ...
by EddieTavares
02 Nov 2018, 15:09
Forum: DIY Stompbox designs
Topic: Trying to mod a Gyrator Eq
Replies: 3
Views: 1411

Re: Trying to mod a Gyrator Eq

lukatosh

Did you tried to increase R1 a little? I suggest R1 100k and reduce C1 to 220pf.
by EddieTavares
25 Sep 2018, 15:47
Forum: Pimp-My-Cheap-Pedal
Topic: idea for a new mod in the guvnor 2
Replies: 4
Views: 2161

Re: idea for a new mod in the guvnor 2

marushio_rima What result do you intend to do? When you reduce c22 you probably had recovered some highs what is almost ok becouse the stock pedal sounds a little dark imho. Be carefull increasing the C8, C12 and C13 because they are in the direct signal path, if you want to use it as a low gain ove...
by EddieTavares
06 Sep 2018, 11:56
Forum: Boutique Stompboxes dissected...
Topic: Solo Dallas - SVDS Replica [traced]
Replies: 165
Views: 57904

Re: Solo Dallas - SVDS Replica [traced]

Bom dia Zé. SVDS is a mic wirelless system modified to work with guitar. Something that I realise when I was teenager comparing some wireless mic and wired ones: when we expand a compressed signal it does not sound always like the original signal, it sounds more like a compressor in addiction it bos...
