Awesome!

Any chance of the capacitor values.?

Infernal 2n3904 and angry amber red LEDs ... Ouch! its not happy .. Oh well!

Your original version is fine however Nocentelli. 100% verified. On another note - shall get used to its arrangement.

Shall perceiver.

Sounds great! But its inverted ... hmmmm.

I.e LDR darkness is brightness. Is there a way around this Nocentelli?

Brill news!

Will get to work!

Big thanks! Nocentelli

Hey all, nocentelli Looking at your verified lightwah lite diagram I would be lying If i said I couldn't quite understand just where some things should be wired. I am very confused about the green Foot LDR wire to sense 1? Can you explain how exactly this should be wired. Also where does the LED Pos...

hmmmm

cheers phatt - will do

Tried wiring my pots both ways

appears the Vero layout above for the Tonemender does not appear to work sadly

Hi ct88

is your build now verified

https://www.freestompboxes.org/download/ ... &mode=view


also the wires that link - example - Treble 1 & Bass 2&3
do these wires link in chain from pot to pot? or two wires from the board independently linked to the pots?


Cheers

Excellent Diagrams! Sinner

shall try the replica version

right i see now, and apologies I meant a 470R

oh! btw - what wiring did you use for your true bypass DPDT and LED circuit.


Shall try this circuit out

I ended up with BC108's in mine I think? Still not boxed up yet, thinking about adding the Foxxrox's wah buffer to it. Soundwise its similar to the Colorsound inductorless wahs. Mictester, you mention a 470 ohm in your text, but I don't see it on the layout? I missed it off that diagram! Sorry :( J...

Nocentelli Have run into a problem I wired Lug 3 of the new installed 100kB Tone Pot to the board Output / Lug 2 Tone Pot to Vol Lug 2 / wired a 4N7 between Lug 1+2 on the Tone pot, and wired Lug 1 to ground. Thing is ... where do I now connect a send wire from to the 3PDT, to the pedals socket out?...

Cheers Nocentelli I have a few 100kB so will give that a try - excellent! bigmufffuzzwizz my thanks also! yes agree, the Superfuzz switch modes, go from warm and bassy to super harsh - want to keep the switch, but an additional pot for sculpting the tones edgy brightness would indeed be a huge benef...

Nocentelli wow! :D thanks! am learning so much - am planning on adding the Tone Control to a Univox Superfuzz clone - my build is already sound great but would like to control the highs somewhat, and keep my EQ pedal free for other placements in my chain - Where do you think would be best on this pa...

Hi all would like to know just where is best to wire the I/O of the Big Muff Tone Control - E.g - to the existing circuit boards I/O or to a foot switch, or the Jack Sockets etc. Also what if your Output is coming out from a Vol Pot lug? :hmmm: Big Muff Tone control as using : http://www.beavisaudio...

Hey again! thanks for all the additional info :wink: have rewired the grounds and added the 1M to the volume lugs 1+2 to the Heliotrope - plugged it in and am getting an overdrive - when I turn the sample dial I can hear a faint sign wave changing pitch> However... Gain and Vol act like an overdrive...

Hi Nocentelli thanks for your help :wink: the big problem i was having was locating where the board Ground and VOL ground goes. Does it go from the board to the volume pot? from the board AND VOL pot to a Jack ground? or from the board to the DC ground, where and how should I place the 1M resistor? ...

Been trying to build the follow version of the Heliotrope for well over two months

the wiring is extremely confusing - could someone please! please! help!

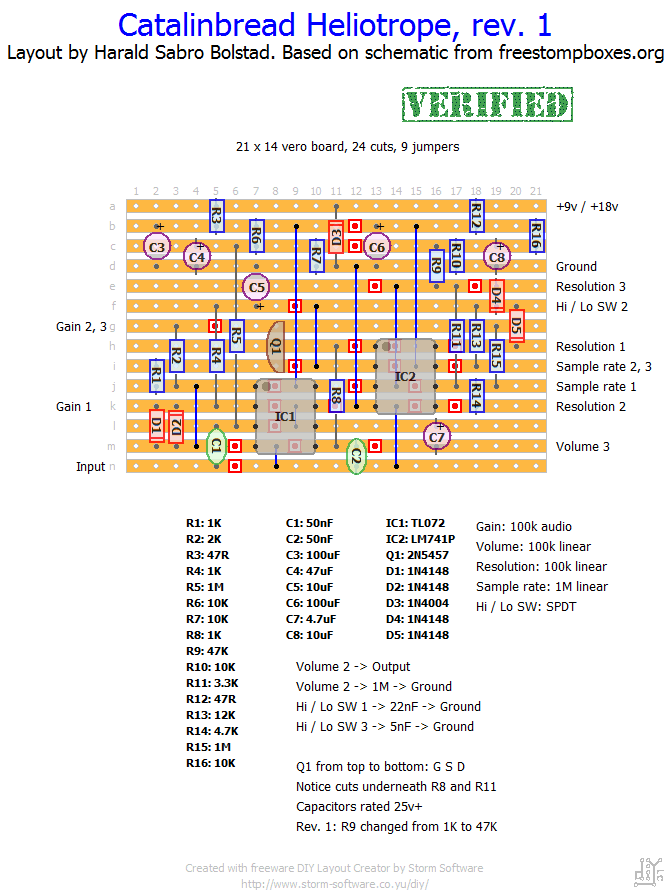

here's a diagram of the vero am building from

Hey all just completed my build but am having problems :( basically am getting ground hum and a faint fuzz signal - also the tone switch does nothing when switched. Have checked board for bridges etc and all wiring seems to be correct. I used 2N3904 and bent the C to B to the ECB style connection po...
