Post by LucifersTrip »

I am one step closer...After realizing there was no change when I pulled IC2 or the transistor, I checked voltages and there was nothing getting to either. It turns out the ground wire wasn't pushed into the breadboard deep enough.

I was sure that would solve the problem, but not yet. I still get an overdrive type distortion and the 5M changes the bass & treble. Now, the 50K has an effect. It turns the volume off at 100% clockwise with little change the rest of the turn.

IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

LucifersTrip wrote:I am one step closer...After realizing there was no change when I pulled IC2 or the transistor, I checked voltages and there was nothing getting to either. It turns out the ground wire wasn't pushed into the breadboard deep enough.

I was sure that would solve the problem, but not yet. I still get an overdrive type distortion and the 5M changes the bass & treble. Now, the 50K has an effect. It turns the volume off at 100% clockwise with little change the rest of the turn.

IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
LucifersTrip
Resistor Ronker
Posts: 416
Joined: 06 Aug 2010, 11:39
my favorite amplifier

Companion Psychedelic Machine

Completed builds

Mosrite Fuzzrite (Si), Mosrite Fuzzrite (Ge)[2], Get Lo-Fi Fuzz, Fuzz Face (Ge) [2], Fuzz Face (Si) [3], Mos-Face, Vox Tone Bender, Kay Tremolo, Os Mutantes Fuzz [2], Psychedelic Fuzz, Smokey Amp, Sunn Buzz, Jen Fuzz, Fancy Fuzzbox, Muff Fuzz (op amp) [2], Buzz Box, Fuzz King, Rangemaster [5], Maestro FZ - 2/3, Ruby Amp, Orpheum Fuzz (Ge) [4], Great Destroyer, Schizo, Carlsbro Suzz, Shin-Ei Companion Fuzz (si), DOD 250 Gray [2], Super Dirt Fuzz, Fuzz Factory, Jordan Boss Tone, Sam Ash Fuzzz Boxx, Heathkit TA-28 Fuzz, Olson New Sound Fuzz, LRE Fuzz Sound, Green Ringer, Vox Super Beatle (Ge), Colorsound One Knob (Ge), Demon Buzzz [2], Demon Wasp v1, Demon Wasp v2, Super Hard-On, Bazz Fuss, Burns Buzzaround [2], Selmer Buzztone, Shin-Ei Companion Fuzz (Ge), Fuzz Face/FY-2 (Ge), Zonk Machine, Univox Squarewave, Demon Fuzzz, Mosrite Fuzzrite BG-500/1000 (Ge), Univox Superfuzz, Marshall Supa Fuzz, Demon Monster, AA Overdrive/ Retro Fuzz, Tone Bender MKII, Psychtar, Jordan Vica Vibe, etc...

Has thanked: 16 times
Been thanked: 68 times
Contact:

Post by LucifersTrip »

negrosinfe wrote:
LucifersTrip wrote:
IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
2n5088
https://www.freestompboxes.org/viewtopic.ph ... 40#p174554

what are your voltages?

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
2n5088
https://www.freestompboxes.org/viewtopic.ph ... 40#p174554

what are your voltages?
IC1: 8.24 on 2; 4.10 on 3, 6 & 7
IC2: 1.73 on 1; 8.24 on 2; 1.87 on 3 & 6
Q: .32 on B, 0 on C & E

i'm using a non fresh 9v battery (8.77v)
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
LucifersTrip
Resistor Ronker
Posts: 416
Joined: 06 Aug 2010, 11:39
my favorite amplifier

Companion Psychedelic Machine

Completed builds

Mosrite Fuzzrite (Si), Mosrite Fuzzrite (Ge)[2], Get Lo-Fi Fuzz, Fuzz Face (Ge) [2], Fuzz Face (Si) [3], Mos-Face, Vox Tone Bender, Kay Tremolo, Os Mutantes Fuzz [2], Psychedelic Fuzz, Smokey Amp, Sunn Buzz, Jen Fuzz, Fancy Fuzzbox, Muff Fuzz (op amp) [2], Buzz Box, Fuzz King, Rangemaster [5], Maestro FZ - 2/3, Ruby Amp, Orpheum Fuzz (Ge) [4], Great Destroyer, Schizo, Carlsbro Suzz, Shin-Ei Companion Fuzz (si), DOD 250 Gray [2], Super Dirt Fuzz, Fuzz Factory, Jordan Boss Tone, Sam Ash Fuzzz Boxx, Heathkit TA-28 Fuzz, Olson New Sound Fuzz, LRE Fuzz Sound, Green Ringer, Vox Super Beatle (Ge), Colorsound One Knob (Ge), Demon Buzzz [2], Demon Wasp v1, Demon Wasp v2, Super Hard-On, Bazz Fuss, Burns Buzzaround [2], Selmer Buzztone, Shin-Ei Companion Fuzz (Ge), Fuzz Face/FY-2 (Ge), Zonk Machine, Univox Squarewave, Demon Fuzzz, Mosrite Fuzzrite BG-500/1000 (Ge), Univox Superfuzz, Marshall Supa Fuzz, Demon Monster, AA Overdrive/ Retro Fuzz, Tone Bender MKII, Psychtar, Jordan Vica Vibe, etc...

Has thanked: 16 times
Been thanked: 68 times
Contact:

Post by LucifersTrip »

negrosinfe wrote:
LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
2n5088
https://www.freestompboxes.org/viewtopic.ph ... 40#p174554

what are your voltages?
IC1: 8.24 on 2; 4.10 on 3, 6 & 7
IC2: 1.73 on 1; 8.24 on 2; 1.87 on 3 & 6
Q: .32 on B, 0 on C & E

i'm using a non fresh 9v battery (8.77v)
did you measure correctly? pin 3 is grounded on IC2 (bottom on schematic).
Are you also using 741's?

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
2n5088
https://www.freestompboxes.org/viewtopic.ph ... 40#p174554

what are your voltages?
IC1: 8.24 on 2; 4.10 on 3, 6 & 7
IC2: 1.73 on 1; 8.24 on 2; 1.87 on 3 & 6
Q: .32 on B, 0 on C & E

i'm using a non fresh 9v battery (8.77v)
did you measure correctly? pin 3 is grounded on IC2 (bottom on schematic).
Are you also using 741's?
I'm using UA741C, and the measurements were incorrect... this are correct:

IC1: 4.10 on 2 & 3; 4.11 on 6, 8.25 on 7
IC2: 1.87 on 2 & 6; 8.25 on 7; 1.82 on 8
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

Do you have any idea what is this for?

When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
LucifersTrip
Resistor Ronker
Posts: 416
Joined: 06 Aug 2010, 11:39
my favorite amplifier

Companion Psychedelic Machine

Completed builds

Mosrite Fuzzrite (Si), Mosrite Fuzzrite (Ge)[2], Get Lo-Fi Fuzz, Fuzz Face (Ge) [2], Fuzz Face (Si) [3], Mos-Face, Vox Tone Bender, Kay Tremolo, Os Mutantes Fuzz [2], Psychedelic Fuzz, Smokey Amp, Sunn Buzz, Jen Fuzz, Fancy Fuzzbox, Muff Fuzz (op amp) [2], Buzz Box, Fuzz King, Rangemaster [5], Maestro FZ - 2/3, Ruby Amp, Orpheum Fuzz (Ge) [4], Great Destroyer, Schizo, Carlsbro Suzz, Shin-Ei Companion Fuzz (si), DOD 250 Gray [2], Super Dirt Fuzz, Fuzz Factory, Jordan Boss Tone, Sam Ash Fuzzz Boxx, Heathkit TA-28 Fuzz, Olson New Sound Fuzz, LRE Fuzz Sound, Green Ringer, Vox Super Beatle (Ge), Colorsound One Knob (Ge), Demon Buzzz [2], Demon Wasp v1, Demon Wasp v2, Super Hard-On, Bazz Fuss, Burns Buzzaround [2], Selmer Buzztone, Shin-Ei Companion Fuzz (Ge), Fuzz Face/FY-2 (Ge), Zonk Machine, Univox Squarewave, Demon Fuzzz, Mosrite Fuzzrite BG-500/1000 (Ge), Univox Superfuzz, Marshall Supa Fuzz, Demon Monster, AA Overdrive/ Retro Fuzz, Tone Bender MKII, Psychtar, Jordan Vica Vibe, etc...

Has thanked: 16 times
Been thanked: 68 times
Contact:

Post by LucifersTrip »

negrosinfe wrote:
LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
negrosinfe wrote:
LucifersTrip wrote:
IC1 has ~ 4.5v on lugs 2, 3, 6
IC2 has ~ 2v on lugs 2 & 6
Q has ~ .4v on the base and 0v on C, which is obviously a problem
My friend Lucifer: which transistor did you use?
2n5088
https://www.freestompboxes.org/viewtopic.ph ... 40#p174554

what are your voltages?
IC1: 8.24 on 2; 4.10 on 3, 6 & 7
IC2: 1.73 on 1; 8.24 on 2; 1.87 on 3 & 6
Q: .32 on B, 0 on C & E

i'm using a non fresh 9v battery (8.77v)
did you measure correctly? pin 3 is grounded on IC2 (bottom on schematic).
Are you also using 741's?
I'm using UA741C, and the measurements were incorrect... this are correct:

IC1: 4.10 on 2 & 3; 4.11 on 6, 8.25 on 7
IC2: 1.87 on 2 & 6; 8.25 on 7; 1.82 on 8
that is pretty much what I have (my battery is 9.6) so it accounts for slightly higher voltages...Either our 741's don't work or we both misinterpreted something & wired it wrong. I think I'm going to pull this off the breadboard and quickly try a Dr Q.

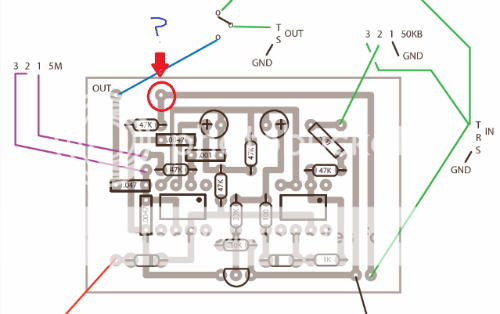

I never build from layouts (only schematics), but that "?" you are pointing to simply looks like just a normal corner where the author forgot to remove a solder point?

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

LucifersTrip wrote:that is pretty much what I have (my battery is 9.6) so it accounts for slightly higher voltages...Either our 741's don't work or we both misinterpreted something & wired it wrong. I think I'm going to pull this off the breadboard and quickly try a Dr Q.

I never build from layouts (only schematics), but that "?" you are pointing to simply looks like just a normal corner where the author forgot to remove a solder point?
I forgot to mention that the 50k pot has no effect yet, i think we must wait to see Rhandy's SFM video...

Can i post pics of my SFM?

(sorry for my por english... :oops: :cry: )
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
LucifersTrip
Resistor Ronker
Posts: 416
Joined: 06 Aug 2010, 11:39
my favorite amplifier

Companion Psychedelic Machine

Completed builds

Mosrite Fuzzrite (Si), Mosrite Fuzzrite (Ge)[2], Get Lo-Fi Fuzz, Fuzz Face (Ge) [2], Fuzz Face (Si) [3], Mos-Face, Vox Tone Bender, Kay Tremolo, Os Mutantes Fuzz [2], Psychedelic Fuzz, Smokey Amp, Sunn Buzz, Jen Fuzz, Fancy Fuzzbox, Muff Fuzz (op amp) [2], Buzz Box, Fuzz King, Rangemaster [5], Maestro FZ - 2/3, Ruby Amp, Orpheum Fuzz (Ge) [4], Great Destroyer, Schizo, Carlsbro Suzz, Shin-Ei Companion Fuzz (si), DOD 250 Gray [2], Super Dirt Fuzz, Fuzz Factory, Jordan Boss Tone, Sam Ash Fuzzz Boxx, Heathkit TA-28 Fuzz, Olson New Sound Fuzz, LRE Fuzz Sound, Green Ringer, Vox Super Beatle (Ge), Colorsound One Knob (Ge), Demon Buzzz [2], Demon Wasp v1, Demon Wasp v2, Super Hard-On, Bazz Fuss, Burns Buzzaround [2], Selmer Buzztone, Shin-Ei Companion Fuzz (Ge), Fuzz Face/FY-2 (Ge), Zonk Machine, Univox Squarewave, Demon Fuzzz, Mosrite Fuzzrite BG-500/1000 (Ge), Univox Superfuzz, Marshall Supa Fuzz, Demon Monster, AA Overdrive/ Retro Fuzz, Tone Bender MKII, Psychtar, Jordan Vica Vibe, etc...

Has thanked: 16 times
Been thanked: 68 times
Contact:

Post by LucifersTrip »

negrosinfe wrote:
I forgot to mention that the 50k pot has no effect yet
mine lowers the volume slightly, then turns sound off at full clockwise
1.82 on 8
how did you get this? shouldn't it be 0?
Can i post pics of my SFM?

(sorry for my poor english... :oops: :cry: )
your english is excellent...of course, you can always post pictures...clear close-ups are best. maybe someone will catch an error.

I forgot to mention, I tried different op-amps (tl061, tl071) with the same pinout but gave me 6 - 8v on IC1 and no sound.
admittedly, i know very little about op-amps...i build primarily ge fuzzes

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

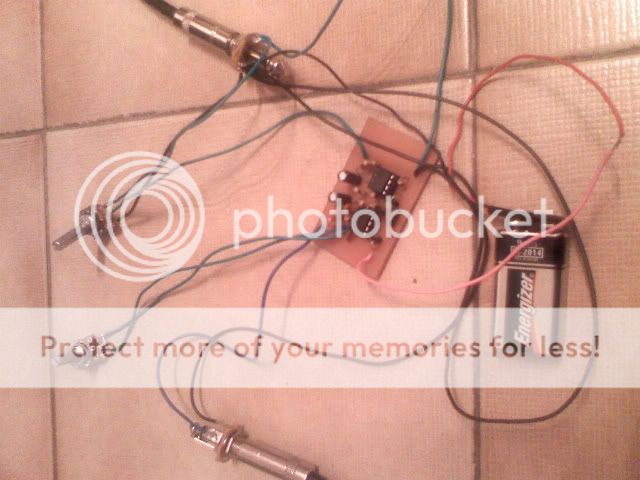

Ok, here are the guts:




When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
greenskull
Resistor Ronker
Posts: 261
Joined: 03 Jul 2007, 23:47
Has thanked: 33 times
Been thanked: 8 times

Post by greenskull »

You guys have any luck getting it working?
fuck smooth tone, fuck eric johnson - Seiche

User avatar
LucifersTrip
Resistor Ronker
Posts: 416
Joined: 06 Aug 2010, 11:39
my favorite amplifier

Companion Psychedelic Machine

Completed builds

Mosrite Fuzzrite (Si), Mosrite Fuzzrite (Ge)[2], Get Lo-Fi Fuzz, Fuzz Face (Ge) [2], Fuzz Face (Si) [3], Mos-Face, Vox Tone Bender, Kay Tremolo, Os Mutantes Fuzz [2], Psychedelic Fuzz, Smokey Amp, Sunn Buzz, Jen Fuzz, Fancy Fuzzbox, Muff Fuzz (op amp) [2], Buzz Box, Fuzz King, Rangemaster [5], Maestro FZ - 2/3, Ruby Amp, Orpheum Fuzz (Ge) [4], Great Destroyer, Schizo, Carlsbro Suzz, Shin-Ei Companion Fuzz (si), DOD 250 Gray [2], Super Dirt Fuzz, Fuzz Factory, Jordan Boss Tone, Sam Ash Fuzzz Boxx, Heathkit TA-28 Fuzz, Olson New Sound Fuzz, LRE Fuzz Sound, Green Ringer, Vox Super Beatle (Ge), Colorsound One Knob (Ge), Demon Buzzz [2], Demon Wasp v1, Demon Wasp v2, Super Hard-On, Bazz Fuss, Burns Buzzaround [2], Selmer Buzztone, Shin-Ei Companion Fuzz (Ge), Fuzz Face/FY-2 (Ge), Zonk Machine, Univox Squarewave, Demon Fuzzz, Mosrite Fuzzrite BG-500/1000 (Ge), Univox Superfuzz, Marshall Supa Fuzz, Demon Monster, AA Overdrive/ Retro Fuzz, Tone Bender MKII, Psychtar, Jordan Vica Vibe, etc...

Has thanked: 16 times
Been thanked: 68 times
Contact:

Post by LucifersTrip »

greenskull wrote:You guys have any luck getting it working?
I actually pulled the parts off the breadboard and built this, which worked right off...
http://www.muzique.com/schem/quack.gif

I didn't even have to pull many other parts since they're so similar

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

I didn't have luck with my SFM yet, but i have to say that I left it alone a few days... perhaps this weekend continue to debugging it!
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
greenskull
Resistor Ronker
Posts: 261
Joined: 03 Jul 2007, 23:47
Has thanked: 33 times
Been thanked: 8 times

Post by greenskull »

I tried throwing it on the breadboard some years ago with a schematic I got from DIYSB and could not get it working. Ended up building the Japanese "Q-Tripper" in Markm's gallery instead.
Don't give up, Negrosinfe!! If I have time (and parts) I'll try Randy's schematic on the ol' breadboard in a few days and test my luck too.
fuck smooth tone, fuck eric johnson - Seiche

User avatar
greenskull
Resistor Ronker
Posts: 261
Joined: 03 Jul 2007, 23:47
Has thanked: 33 times
Been thanked: 8 times

Post by greenskull »

Alright, just finished building this up on a pcb that Rhandy Gaye supplied artwork/layout for....... no luck!! Getting no response from the 50k pot, but the other control is doing the treble/bass thing when turned. Haven't debugged yet for soldering errors, but I did notice the 2.2M on the 2nd and 6th leg of IC 2 on the schematic is a 1k in the pcb layout. Which is correct??
fuck smooth tone, fuck eric johnson - Seiche

User avatar
greenskull
Resistor Ronker
Posts: 261
Joined: 03 Jul 2007, 23:47
Has thanked: 33 times
Been thanked: 8 times

Post by greenskull »

Okay, changed out the 1k resistor and put in the 2.2M as noted on schematic and viola, it works!!!
I didn't have a 5M pot so I went with a 330k fixed resistor and a 1M pot. The transistor I went with is a 2n5089 and op amps are UA741CP.
Negrosinfe:
Which resistor value did you go with, the one noted in schematic or pcb layout? That could be your problem too.
fuck smooth tone, fuck eric johnson - Seiche

User avatar
negrosinfe
Posts: 34
Joined: 02 Aug 2011, 00:50
my favorite amplifier: Marshall
Has thanked: 15 times
Been thanked: 3 times

Post by negrosinfe »

Green: I used 1k resistor as shown in the pcb layout, maybe tomorrow try to change it.
I used 2N5088 because i don't have any 2N5089, that could be a problem too?

One last question: with the change of the 1k resistor, did your 50k pot work?

(sorry for my very very poor english again!)
When I'm attacked by Christians, I proudly repond: Your GOD was nailed to the cross, mine has a hammer in his hand, draw your own conclusions... Nergal (Behemoth)

User avatar
greenskull
Resistor Ronker
Posts: 261
Joined: 03 Jul 2007, 23:47
Has thanked: 33 times
Been thanked: 8 times

Post by greenskull »

The 2n5088 is fine. I think you will have success when you change the 1k to 2.2m. Everything worked fine when I did that.
Good luck!!
fuck smooth tone, fuck eric johnson - Seiche

User avatar
rhandy gaye
Solder Soldier
Posts: 174
Joined: 21 Apr 2008, 12:30
Location: TASMANIA Australia
Has thanked: 3 times
Been thanked: 20 times

Post by rhandy gaye »

hi, i just saw you got it working, that's awesome.

the 1k resistor is my fault, a typo.

Post Reply
