Does anyone have a link to the 20mm pots used for a replica build? Much prefer a link to a source in North America. What is the length of the shaft? I do not think standard 24mm pots will work for these.

Thanks

ringworm
Breadboard Brother
Posts: 121
Joined: 19 Apr 2009, 17:36
Has thanked: 24 times
Been thanked: 78 times

Post by ringworm »

Omeg 20mm pots are what you want. Freely (OK cheaply) available in Maplins UK. Here's a German source http://www.musikding.de/Omeg-Pot-20mm Don't know a USA source. Shafts can be cut to suit.

sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

U can get them at Conrad UK. If I wont forget I will post my layout and transfer files later when I get back home

Its scaled for Omegs

tassosmavr
Posts: 11
Joined: 04 Apr 2011, 00:17
Has thanked: 1 time
Been thanked: 1 time

Post by tassosmavr »

sinner wrote:U can get them at Conrad UK. If I wont forget I will post my layout and transfer files later when I get back home

Its scaled for Omegs
Please

User avatar
DrNomis
Old Solderhand
Posts: 6896
Joined: 16 Jul 2009, 05:56
my favorite amplifier

Self-Built Valve Amp Head :)

Completed builds

Dallas Arbiter Fuzz Face,Tone Bender Professional Mk 3,Tone Bender 3-Knob,Baja BK Butler Tube Driver,Baja Real Tube Overdrive,Roger Mayer Octavia,EH Soul Preacher,Tech 21 XXL Distortion,MFOS Weird Sound Generator.

Location

Darwin,Northern Territory Australia

Has thanked: 99 times
Been thanked: 267 times

Post by DrNomis »

I recently bought ten Tung Sol AC125 Transistors, might use three of them to make a Mk III Tonebender soon..... :thumbsup
Genius is not all about 99% perspiration, and 1% inspiration - sometimes the solution is staring you right in the face.-Frequencycentral.

Over Drive
Posts: 11
Joined: 19 Sep 2011, 16:46

Post by Over Drive »

ringworm wrote:Omeg 20mm pots are what you want. Freely (OK cheaply) available in Maplins UK. Here's a German source http://www.musikding.de/Omeg-Pot-20mm Don't know a USA source. Shafts can be cut to suit.
Those will not work with sinner's layout. That requires the "reverse" right angle PCB mount terminals.

sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

U haven't seen my layout yet mate

They will fit and work as they should. I should be back home in 2 hours. I wont forget today

sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

Ok, these are quite old, I had newer one, with fatter tracks and pads, few ad-ons like jumpered output resistor, or added pads for 4th transistor wired as a diode, and generally more charming - but I can't find it, I have a mess on my hard drive

These are layouts for quite a few MK3 variants including units branded by subcontractors, and two knob fuzz sound

Have fun

sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

...and the transfer file

85mm/85mm square

User avatar
controller700
Breadboard Brother
Posts: 67
Joined: 29 Dec 2008, 16:49
Location: Germany
Has thanked: 3 times

Post by controller700 »

Amazing work sinner! Thank´s for sharing!! :thumbsup

ringworm
Breadboard Brother
Posts: 121
Joined: 19 Apr 2009, 17:36
Has thanked: 24 times
Been thanked: 78 times

Post by ringworm »

Over Drive wrote:Those will not work with sinner's layout. That requires the "reverse" right angle PCB mount terminals.
What Sinner says. You'll need to bend the pins back but that's easy. The only problem you might come across is the threaded part of the pot not being deep enough on a very thick enclosure or unusually thick PCB board, it can be tight but it'll work.

Awesome work on those layouts Sinner btw!

Over Drive
Posts: 11
Joined: 19 Sep 2011, 16:46

Post by Over Drive »

sinner wrote:U haven't seen my layout yet mate

They will fit and work as they should. I should be back home in 2 hours. I wont forget today
Have you tried the pots in that link yet?

Over Drive
Posts: 11
Joined: 19 Sep 2011, 16:46

Post by Over Drive »

ringworm wrote: The only problem you might come across is the threaded part of the pot not being deep enough on a very thick enclosure or unusually thick PCB board, it can be tight but it'll work.
This and the pins are not going to have a lot of length on them. Have you tried the pots yet?

ringworm
Breadboard Brother
Posts: 121
Joined: 19 Apr 2009, 17:36
Has thanked: 24 times
Been thanked: 78 times

Post by ringworm »

Yes, I used them on a similar through-board layout I made of the CMI Fuzz Unit/Jumbo Tonebender.
See here https://www.freestompboxes.org/viewtopic.ph ... 0#p199788

ringworm
Breadboard Brother
Posts: 121
Joined: 19 Apr 2009, 17:36
Has thanked: 24 times
Been thanked: 78 times

Post by ringworm »


GodSaveMetal
Resistor Ronker
Posts: 301
Joined: 19 Sep 2009, 17:11
Has thanked: 139 times
Been thanked: 54 times

Post by GodSaveMetal »

sinner wrote:Ok, these are quite old, I had newer one, with fatter tracks and pads, few ad-ons like jumpered output resistor, or added pads for 4th transistor wired as a diode, and generally more charming - but I can't find it, I have a mess on my hard drive

These are layouts for quite a few MK3 variants including units branded by subcontractors, and two knob fuzz sound

Have fun
GREAT sinner!!!! please what transistor I have to use in these LAYOUT??? will be BC108/BC109??? or what??

THANKS man!!!!!!!!!

sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

No mate. Your choice of PNP germaniums

Over Drive
Posts: 11
Joined: 19 Sep 2011, 16:46

Post by Over Drive »

Great work, Sinner.Cheers!

User avatar
controller700
Breadboard Brother
Posts: 67
Joined: 29 Dec 2008, 16:49
Location: Germany
Has thanked: 3 times

Post by controller700 »

Great informations and great layouts in this place!! Thank´s a lot!

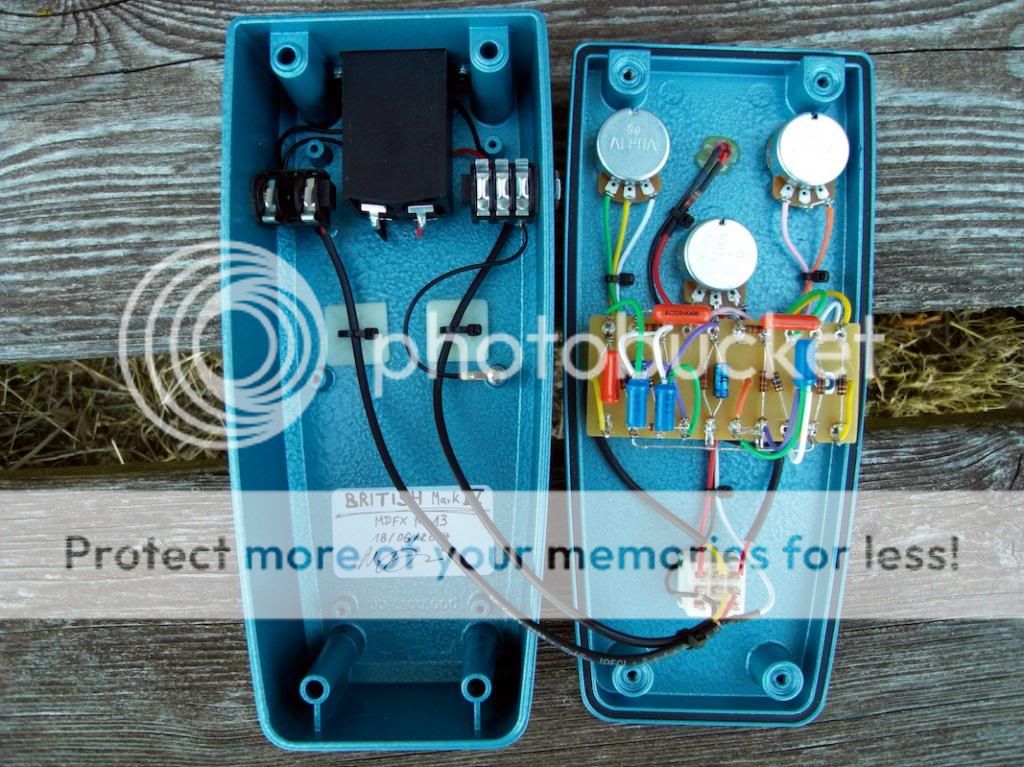

Here´s my latest one. Point to point MK IV. :horsey:

Full album:
https://s573.photobucket.com/user/contro ... 0Mark%20IV


sinner
Old Solderhand
Posts: 4809
Joined: 06 Nov 2008, 18:16
Location: ...no more
Has thanked: 1111 times
Been thanked: 954 times

Post by sinner »

Where did u get that cute enclosure?
