Jackson, JX-3 Preamp. Power supply [traced]

Tube or solid-state, this section goes to eleven!
Post Reply
User avatar
PeteSignal
Information
Posts: 2
Joined: 07 Mar 2022, 15:54
Has thanked: 1 time
Been thanked: 3 times
Contact:

Post by PeteSignal »

Hello

This is a nice and rare rack mount tube preamp from the early 90's from Jackson. I have traced the power supply and created a schematic. Its just a simple linear supply.
I was thinking about reverse engineering the whole thing. Leave a comment if you want me to trace the entire thing. If I get enough interest Ill do it.

I posted a YouTube video about it on my channel:


Peace out.
Pete

User avatar
ppluis0
Diode Debunker
Information
Posts: 915
Joined: 14 Jul 2010, 18:33
Location: Argentina
Has thanked: 127 times
Been thanked: 299 times

Post by ppluis0 »

Hi Pete,

Of course will be interesting to have the schematic diagram to know how this unit was designed.

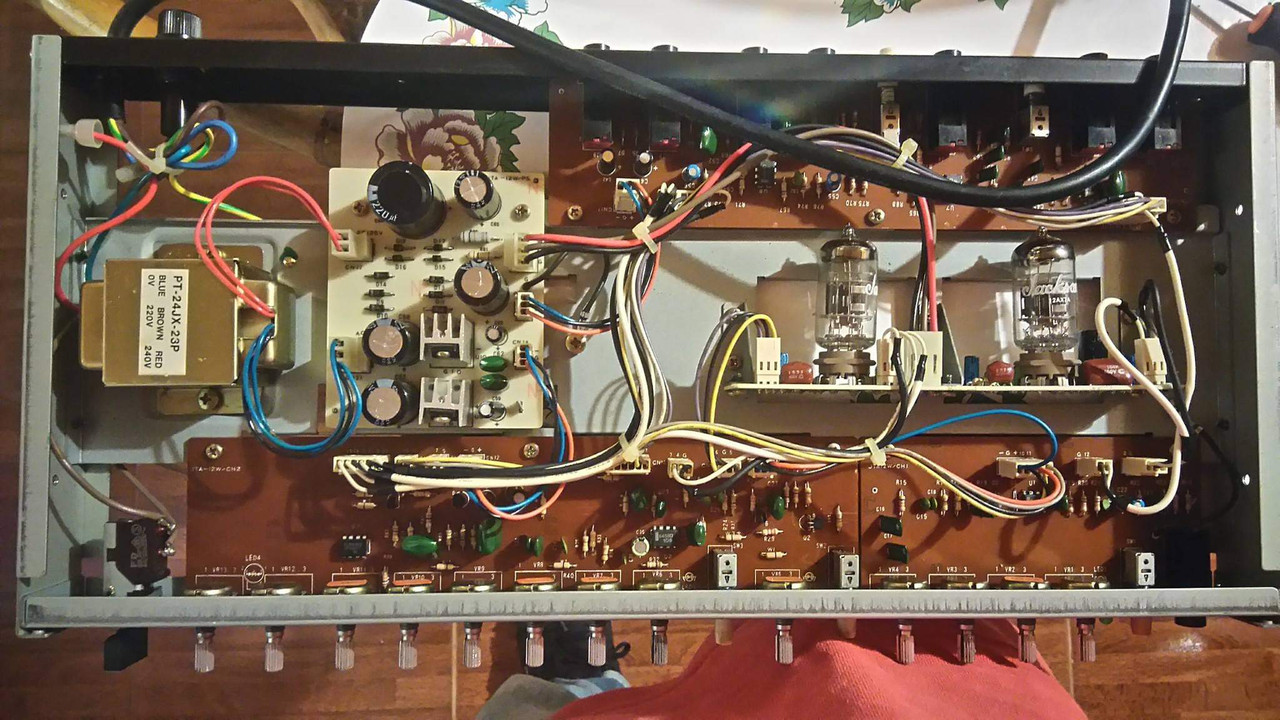

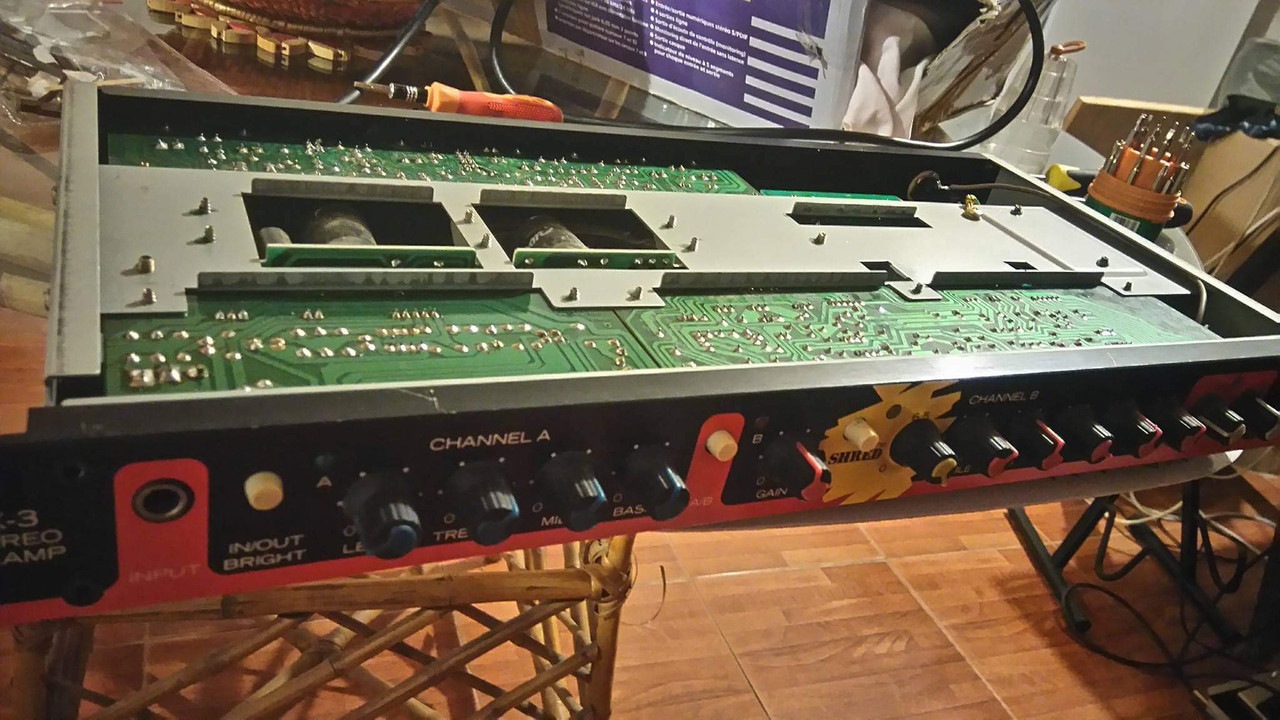

There is a couple of gutshots found on the web:

Looks as the PCB isn't too complex to extract a diagram:
Imageupload photos

Cheers,
Jose

User avatar
bmxguitarsbmx
Cap Cooler
Information
Posts: 510
Joined: 25 Mar 2010, 21:15
Has thanked: 700 times
Been thanked: 216 times

Post by bmxguitarsbmx »

Nice pics! This scheme may be a good starting point for tracing.
Attachments
jackson%20JG2_3.pdf
(1.15 MiB) Downloaded 332 times

User avatar
bajaman
Old Solderhand
Information
Posts: 4544
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 593 times
Been thanked: 2050 times

Post by bajaman »

Great preamp - a friend of mine used one of these way back then - nice Marshally sound ;-)
be kind to all animals - especially human beings

User avatar
deltafred
Opamp Operator
Information
Posts: 1654
Joined: 06 Apr 2010, 16:16
Location: England
Has thanked: 813 times
Been thanked: 306 times

Post by deltafred »

We're always interested in any schematics.
Politics is the art of so plucking the goose as to obtain the most feathers with the least squawking. - R.G. 2011
Jeez, she's an ugly bastard, she makes my socks hurt. I hope it's no ones missus here. - Ice-9 2012

User avatar
jmpj45
Information
Posts: 33
Joined: 25 Mar 2014, 01:29
Location: Texas
Has thanked: 2 times
Been thanked: 3 times

Post by jmpj45 »

Yes a schematic would be great.

User avatar
jmpj45
Information
Posts: 33
Joined: 25 Mar 2014, 01:29
Location: Texas
Has thanked: 2 times
Been thanked: 3 times

Post by jmpj45 »

Any info on tracing the jx-3?

User avatar
blackboarcult
Breadboard Brother
Information
Posts: 72
Joined: 28 Mar 2018, 19:18
my favorite amplifier: one that works.
Location: Norway
Has thanked: 89 times
Been thanked: 70 times

Post by blackboarcult »

I rescued my old unit from my parent's garage and started tracing it.
I've only gotten this far, and will have to postpone the rest of it (outputs, switching, psu, etc) to next week, as I will need to properly gut it to check the traces thoroughly.
In the meantime, it is lying open on my bench, so if any questions, I'll be happy to oblige.
Cheers!
Attachments
jackson jx-3 draft1.png

User avatar
jmpj45
Information
Posts: 33
Joined: 25 Mar 2014, 01:29
Location: Texas
Has thanked: 2 times
Been thanked: 3 times

Post by jmpj45 »

Hi have you got any further on the schematic thanks.

User avatar
blackboarcult
Breadboard Brother
Information
Posts: 72
Joined: 28 Mar 2018, 19:18
my favorite amplifier: one that works.
Location: Norway
Has thanked: 89 times
Been thanked: 70 times

Post by blackboarcult »

Nah, I've had to shelve it for now, as the switching parts were a bit too complicated for me and work & studies are taking most of my time as of now... It'll have to wait until end of semester, but it is still in my backburner. I can post pictures of the boards if you are willing to take it from there.

User avatar
jmpj45
Information
Posts: 33
Joined: 25 Mar 2014, 01:29
Location: Texas
Has thanked: 2 times
Been thanked: 3 times

Post by jmpj45 »

Yes post the pics see what I can do thanks
