Dirk Hendrik - Real Tube Screamer (1590bb)

Dirk_Hendrik · Post by **Dirk_Hendrik** » 01 Dec 2007, 17:03

Posted here somewhere else already a while ago but belongs here somewhat. Tubescreamer with a starved plate distortion "engine"

http://www.dirk-hendrik.com/temp/rn_tubedrive.pdf[/url]

all made to fit a 1590BB case smoothly.

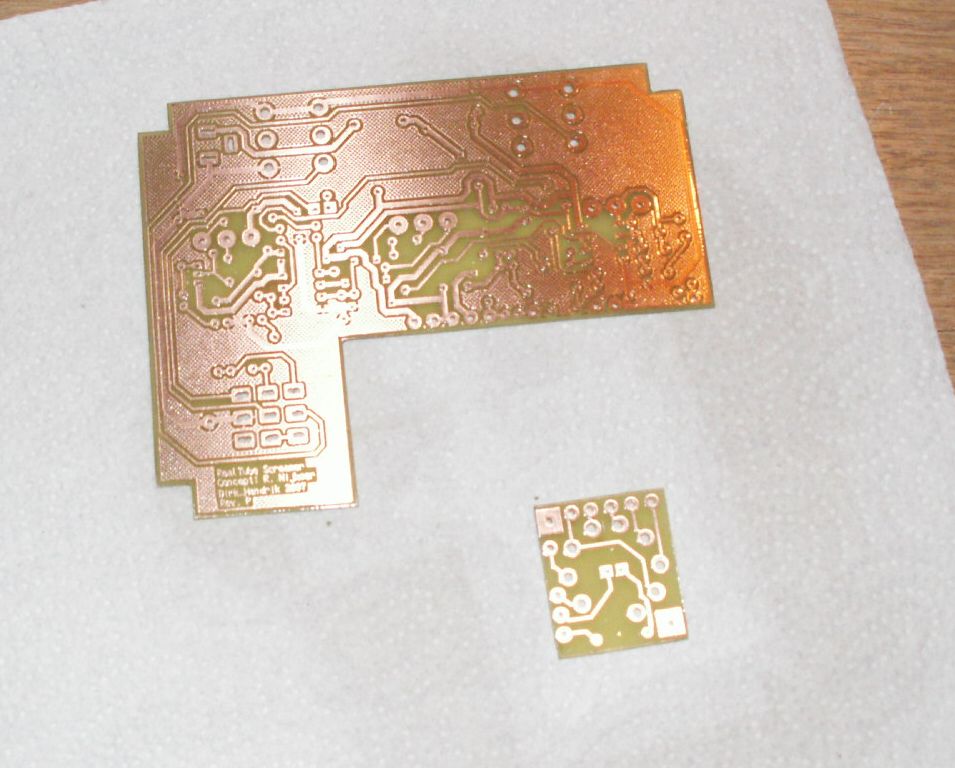

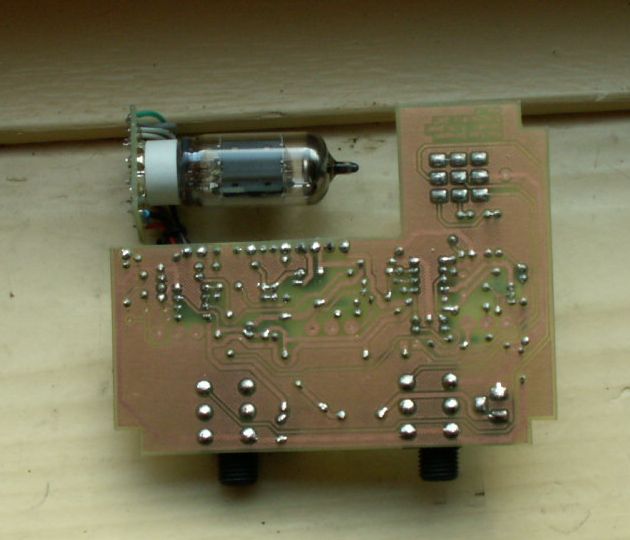

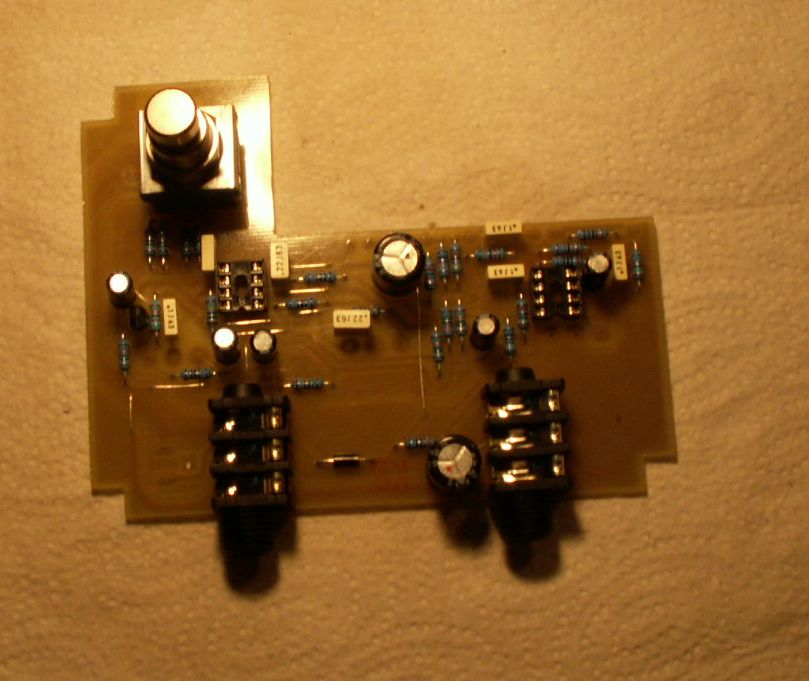

And some pics:

(admin: increased the font of the project link; some among us are over fifty

)

snail · Post by **snail** » 01 Dec 2007, 19:12

Nice!
Got any sound clips?

snail

DougH · Post by **DougH** » 01 Dec 2007, 22:10

Looks real nice.

I designed a one-tube tube pedal a couple years ago that should fit nicely in a 1590bb. Haven't built it yet. I used an op amp to drive a car radio tube, which is intended to be run at the lower voltages. Nothing wrong with starved plate or driving a starved plate tube with an op amp. It can really sound good if done right. I've been enjoying my pentode driver lately. It employs an op amp to drive 2 6ak6 pentodes.

Your build looks great. Would love to hear clips if you have them.

gnognofasciani · Post by **gnognofasciani** » 01 Dec 2007, 23:46

As far as I can see it is based on jack orman's tubedriver plus a ts tone control and an output buffer...
If you want to have an idea of the sound you can find some samples of the JO tubedriver here http://www.diyitalia.it/index.php?optio ... 5&catid=53 (notice that the 100n cap before the tube has been changed with a 18n one because it sounded buzzy)

BTW Great PCB work

Dirk_Hendrik · Post by **Dirk_Hendrik** » 02 Dec 2007, 09:33

The rough schematic is not mine. It came through another project but I decided that one had too muck offboard wiring.

The Orman tubedriver comes straight from the BK butler tubesdriver.

bajaman · Post by **bajaman** » 02 Dec 2007, 11:06

Hi Dirk
I remember seeing this when you first posted it

- how about a diy project with schematic, layout and PCB tracks, so we can all have a go at building one - it looks really well laid out and could be a fun build.
cheers
bajaman

analogguru · Post by **analogguru** » 02 Dec 2007, 11:09

bajaman wrote:Hi Dirk
I remember seeing this when you first posted it - how about a diy project with schematic, layout and PCB tracks, so we can all have a go at building one - it looks really well laid out and could be a fun build.
cheers
bajaman

Baja, If you want a copy, you have to trace it...

analogguru

bajaman · Post by **bajaman** » 02 Dec 2007, 11:12

Baja, If you want a copy, you have to trace it

Awwwww - pretty please

bajaman

Dirk_Hendrik · Post by **Dirk_Hendrik** » 02 Dec 2007, 16:58

bajaman wrote:Hi Dirk
I remember seeing this when you first posted it - how about a diy project with schematic, layout and PCB tracks, so we can all have a go at building one - it looks really well laid out and could be a fun build.
cheers
bajaman

Hmmm.

I'd say I started that post above with a PDF which pretty much contains all you want to know

bajaman · Post by **bajaman** » 02 Dec 2007, 20:50

I have already downloaded it a few months back

Sorry Dirk

So much going on here - forgot I already had the pdf and pictures.
I will build one for a Xmas present for myself - Grolschie will probably want it though

Thanks SO MUCH for sharing this EXCELLENT project with us all here.
This should be on everyone's building list

bajaman

Dirk_Hendrik · Post by **Dirk_Hendrik** » 03 Dec 2007, 08:40

And modman,
Thanks

soulsonic · Post by **soulsonic** » 06 Jan 2008, 17:54

I think I will give this a go too. I remember that video of you playing it through a Sound City amp. It had a nice rhythm crunch - the sort of sound I like.

noelgrassy · Post by **noelgrassy** » 06 Jan 2008, 18:44

I'm gonna round up the parts for a build as well. I've always been curios about a tube under my feet.

Your build looks superlative. Don't be suprised if you get alot of hits on this!

MoreCowbell · Post by **MoreCowbell** » 06 Jan 2008, 19:24

GREAT WORK !

Truly a nice looking project...

briggs · Post by **briggs** » 06 Jan 2008, 19:35

Yes, that really is a quality build. Kudos to you! Any shots of it mounted in an enclosure?

Dirk_Hendrik · Post by **Dirk_Hendrik** » 10 Jan 2008, 08:17

and

~arph · Post by **~arph** » 11 Jan 2008, 16:54

You can call me over fifty, but eh.. I can't seem to find the power supply rating.. my guess it's 12-15V DC, or is it fine on nine ?

Dirk_Hendrik · Post by **Dirk_Hendrik** » 11 Jan 2008, 17:20

12 max

C13 · Post by **C13** » 20 Mar 2010, 12:55

hello all great people here

I C13 was impressed with what you make,, this is an excellent forum for sharing knowledge .. please me introduce myself, I come from Indonesia, I was the guitar player and has an electronic hobby, I've made some pedals from tonepad and ggg

, , and many are impressed and they want to order it to me, btw what steps I need to do to get the products I can make them enjoy a good and true ...
please saa good advice from you all .. thank you ....
regard

..

Greenmachine · Post by **Greenmachine** » 20 Mar 2010, 16:22

Sexy build! Great photos. Thanks for sharing.
