BJF - Folk Fuzz  [traced]

General documentation, gut shot, schematic links, ongoing circuit tracing, deep thoughts ... all about boutique stompboxes.
User avatar
StickMan
Information
Posts: 7
Joined: 30 Dec 2007, 18:24

Post by StickMan »

Hey Bjorn!

I have a couple of questions about the Folk Fuzz.

I noticed that you moved the "Fuzz" control from the traditional spot on the emitter of Q2 to the input. So the "Fuzz" is essentially on full and the knob now works much the same as rolling back the volume on the guitar with an original FF. This makes sense to me.

Why did you rig it up the way you did, with a separate 1M resistor off the sweep to ground? Why not just connect the jack to lug 1 of the pot, log 3 to ground and the sweep to the input of the circuit?

Second question:

Why use two different types of MOSFETs for the clipping diodes. Why not use two the same, and simply flip one around so it clips in the other direction?

Thanks for your time. Like many others here, I appreciate the time you've taken to explain your approach to us on this board.

dave.

User avatar
BJF
Resistor Ronker
Information
Posts: 269
Joined: 03 Nov 2007, 10:37
Has thanked: 2 times
Been thanked: 68 times

Post by BJF »

StickMan wrote:Hey Bjorn!

I have a couple of questions about the Folk Fuzz.

I noticed that you moved the "Fuzz" control from the traditional spot on the emitter of Q2 to the input. So the "Fuzz" is essentially on full and the knob now works much the same as rolling back the volume on the guitar with an original FF. This makes sense to me.

Why did you rig it up the way you did, with a separate 1M resistor off the sweep to ground? Why not just connect the jack to lug 1 of the pot, log 3 to ground and the sweep to the input of the circuit?

Second question:

Why use two different types of MOSFETs for the clipping diodes. Why not use two the same, and simply flip one around so it clips in the other direction?

Thanks for your time. Like many others here, I appreciate the time you've taken to explain your approach to us on this board.

dave.
Hi Dave,

Well as you can see in the circuit it has a voltage controlled input, by means of the resistor in series with the input. As this is varied it aslo affects the base response as it works as a filter as well and the 1M resistor works as a resistans multiplier actually just a part of damping at minimum fuzz so the pot appears to be twice as big.
This makes also minimum noise at minimum fuzz- this is explanied in the original article
..
This circuit does not run on maximum gain but has a a couple of feedback systems that makes the circuit stable using many different types of transistors and also feedback system to control excess noise.

The circuit is a basic application of a two stage transistor amplifier to get higher gain and higher input impedance than a single transistor.



Two different Mos fets?
Well as you can see in the original articles when using bipolar transistors the base to emitter doide is used since that junction is made to be progressive in tenths of the total forward voltage.

Of course you can use J-fets or Mos fets connected as diodes as well with slightly different results.

I have built very few but some of these using the transistor of the day in the true spirit of the Folk Fuzz- use what you can and what sounds good

Have fun
BJ

User avatar
Whoismarykelly
Resistor Ronker
Information
Posts: 395
Joined: 22 Oct 2007, 18:26
Has thanked: 6 times
Been thanked: 17 times

Post by Whoismarykelly »

I believe he uses pots to alter the input impedance on several of his pedals.

User avatar
BJF
Resistor Ronker
Information
Posts: 269
Joined: 03 Nov 2007, 10:37
Has thanked: 2 times
Been thanked: 68 times

Post by BJF »

Whoismarykelly wrote:I believe he uses pots to alter the input impedance on several of his pedals.
Hi,

Well atleast some;)this has a very interesting effect on pick ups aswell considering the high Z nature of guitar pick ups

have fun
BJ

User avatar
StickMan
Information
Posts: 7
Joined: 30 Dec 2007, 18:24

Post by StickMan »

Bjorn,

Thanks for the info. I wasn't able to find the original articles anywhere (at least not in English). The pot wiring makes sense now. I had actually popped a 1M pot at the front of an ROG Tantalus Project fuzz, wired as I had described, but I'll go back and change it to see how it works.

I still have one more question, on the Deluxe 3,5% schematic: Where does the 3 lug on the "Diskant" pot connect?

User avatar
soulsonic
Old Solderhand
Information
Posts: 3880
Joined: 27 Jun 2007, 03:38
my favorite amplifier: Traynor YVM-1
Completed builds: too many!
Location: Morgantown, WV
Has thanked: 179 times
Been thanked: 458 times
Contact:

Post by soulsonic »

I can't believe this hasn't come up here yet... I'm so out of the loop, I have just heard of it.

A couple years ago, Björn was cool enough to share the schematic for his Folk Fuzz.
You can see the article here on Custom-Sounds:
http://www.custom-sounds.com/epages/cus ... emplate/33

Looks like an interesting variation of the ol' Fuzz Face. Interesting tricks.
"Analog electronics in music is dead. Analog effects pedal design is a dead art." - Fran

User avatar
soulsonic
Old Solderhand
Information
Posts: 3880
Joined: 27 Jun 2007, 03:38
my favorite amplifier: Traynor YVM-1
Completed builds: too many!
Location: Morgantown, WV
Has thanked: 179 times
Been thanked: 458 times
Contact:

Post by soulsonic »

Oops, I'm so out of it, I didn't realize there was already a thread for this. Well, this info wasn't there, so feel free to merge it in...
"Analog electronics in music is dead. Analog effects pedal design is a dead art." - Fran

User avatar
analogguru
Old Solderhand
Information
Posts: 3238
Joined: 26 Jun 2007, 13:58
Been thanked: 123 times
Contact:

Post by analogguru »

merged....

The basic idea comes from the (transistor) Muff Fuzz (later Little Muff Pi), which I assume predates the MXR Distortion+.

The additional components at the emitter of Q1 are for better temperature stabilization and were common in every ("better") mic-amp of this era.

The potentiometer at the input was part of discussions of the 90`s and acts similar to the input resistor of a non-inverting op-amp stage.

analogguru
There´s a sucker born every minute - and too many of them end up in the bootweak pedal biz.

User avatar
BJF
Resistor Ronker
Information
Posts: 269
Joined: 03 Nov 2007, 10:37
Has thanked: 2 times
Been thanked: 68 times

Post by BJF »

analogguru wrote:merged....

The basic idea comes from the (transistor) Muff Fuzz (later Little Muff Pi), which I assume predates the MXR Distortion+.

The additional components at the emitter of Q1 are for better temperature stabilization and were common in every ("better") mic-amp of this era.

The potentiometer at the input was part of discussions of the 90`s and acts similar to the input resistor of a non-inverting op-amp stage.

analogguru
Hi,

Thanks for merging.

Yes that's likely so that the Muff Fuzz may have predated the MXR Distortion + while those are quite different circuits and both are using OP amps as I recall.

Ah, yes this is a somewhat standard two transistor amplifier and the circuit indeed acts similar to an inverting OP amp stage.

Hm, if this discussion about potentiometers at the input of an OP was being had at the internet in the 90's I would know nothing about that. However it follows from the gain equation for the circuit what a variable resistor in this point would do to an inverting OP amp stage aswell as to this stage and indeed the MXR Distortion+ also uses a capacitor and variable resitor to change both gain and frequency response.

Anyway have fun :popcorn:
BJ

User avatar
RnFR
Old Solderhand
Information
Posts: 4880
Joined: 09 Jan 2008, 06:02
my favorite amplifier: Traynor YBA-III, Fender Super Six
Completed builds: custom fuzz.
Location: Inner Earth
Has thanked: 139 times
Been thanked: 133 times
Contact:

Post by RnFR »

i made this layout a while back, thought i would post it here since ol' torcho pulled his. it's yet unverified, but i have checked it and believe it to be correct. if someone wants to double check, that would of course be great. and as always, if you build it, let me know.

cheers.
"You've converted me to Cubic thinking. Where do I sign up for the newsletter? I need to learn more about how I can break free from ONEism Death Math." - Soulsonic

Blog-APOCALYPSE AUDIO

User avatar
db72
Information
Posts: 29
Joined: 20 Feb 2008, 22:52
Been thanked: 1 time

Post by db72 »

Anyone do a vero of the Deluxe version? I heard it has an extra set of diodes and LEDs you can switch in.

User avatar
RnFR
Old Solderhand
Information
Posts: 4880
Joined: 09 Jan 2008, 06:02
my favorite amplifier: Traynor YBA-III, Fender Super Six
Completed builds: custom fuzz.
Location: Inner Earth
Has thanked: 139 times
Been thanked: 133 times
Contact:

Post by RnFR »

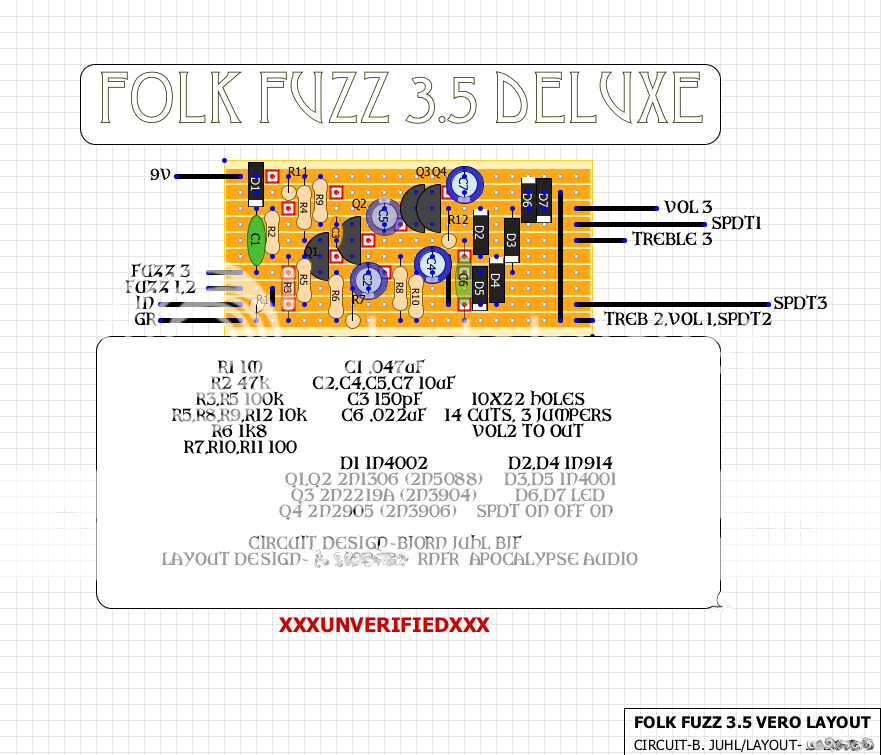

here you go! i found a missing trace cut in the other layout as well. if you build it, let me know so i can mark the layout verified.

"You've converted me to Cubic thinking. Where do I sign up for the newsletter? I need to learn more about how I can break free from ONEism Death Math." - Soulsonic

Blog-APOCALYPSE AUDIO

User avatar
Ben N
Cap Cooler
Information
Posts: 487
Joined: 12 Dec 2008, 03:34
my favorite amplifier: Ampeg J12D Jet
Location: Israel
Has thanked: 167 times
Been thanked: 50 times

Post by Ben N »

The link for the article/schematic is dead. Anyone have a current link, or a copy?
TIA,
Ben

User avatar
tlpruitt
Information
Posts: 23
Joined: 30 Oct 2007, 17:56
Has thanked: 1 time
Been thanked: 1 time

Post by tlpruitt »

Ben N wrote:The link for the article/schematic is dead. Anyone have a current link, or a copy?
TIA,
Ben
Here it is:
http://www.custom-sounds.com/epages/Gag ... cles/build

User avatar
Ben N
Cap Cooler
Information
Posts: 487
Joined: 12 Dec 2008, 03:34
my favorite amplifier: Ampeg J12D Jet
Location: Israel
Has thanked: 167 times
Been thanked: 50 times

Post by Ben N »

Thanks!

User avatar
BennyBoop
Information
Posts: 41
Joined: 02 Jun 2008, 21:01
Location: Linköping, Sweden

Post by BennyBoop »

The schem in the link has just two pots. I've seen pictures of pedals with three, is that the delux version? Anyone got a schem in that case? Or could somone point out the differences?

Cheers/Ben

User avatar
soulsonic
Old Solderhand
Information
Posts: 3880
Joined: 27 Jun 2007, 03:38
my favorite amplifier: Traynor YVM-1
Completed builds: too many!
Location: Morgantown, WV
Has thanked: 179 times
Been thanked: 458 times
Contact:

Post by soulsonic »

I'm certain the 3-control version is the "3.5%" one. I believe the only major difference is the addition of a tone control.
"Analog electronics in music is dead. Analog effects pedal design is a dead art." - Fran

User avatar
noelgrassy
Resistor Ronker
Information
Posts: 388
Joined: 28 Nov 2007, 02:43
my favorite amplifier: MOTS Magnatone & Trainwreck
Completed builds: Tonebender Mk II w/ 3 OC75's, Burns BuzzAround w/NKT 275,Rangemaster w/ OC44, Fuzz Face w/ SKS363's, CJOD, Harmonic Percolator w/2N404A & 2N3635(vintage correct box,sliding pots, 1%glass resistors),Stack-O-Dimes & Whipple Wahs,
Location: Vacuum Tube Valley, Cali
Has thanked: 11 times
Been thanked: 3 times

Post by noelgrassy »

Here's the one that was used with the boards designed by J Frommel & NOC3 as approved by Bjorn.
The boards a labeled "Folk Fuzz Dlx 3.5%".

Hope this helps.
Attachments
Copyright does not protect facts, ideas, systems, or methods of operation, although it may protect the way these things are expressed. US Copyright Office

User avatar
BennyBoop
Information
Posts: 41
Joined: 02 Jun 2008, 21:01
Location: Linköping, Sweden

Post by BennyBoop »

Thnx.

I'll have a look at it tomorrow, too tired now.

User avatar
SirElwood
Breadboard Brother
Information
Posts: 60
Joined: 20 May 2008, 09:28
Has thanked: 4 times
Been thanked: 6 times
Contact:

Post by SirElwood »

Found this picture on the web. Maybe not much value, but it seems that not all BJF effects are gooped. https://img21.imageshack.us/i/bjfe20fol ... 35251.jpg/
