Hmz I'd love to try something like this, been looking for a good reason to get into tube circuit designs. Problem is, I'm a bass player, and I still haven't found a decent sounding tube OD that works on a bass .
Got Samples?
Not really a good design for bass guitar
It could be adapted to be suitable - It would need some form of blend to mix the clean fundamental notes with the distorted sound - maybe a low pass filter on the clean sound as well to avoid conflict with the distorted high end response. I may work on something in the future if sufficient interest is shown
I never do samples
But it sounds similar to the B K Butler or Chandler Tube Driver - just has a simple tone filter though instead of the treble and bass passive ladder circuit.
cheers
bajaman
been looking for a good reason to get into tube circuit designs
Let me emphasise - this is not really a tube circuit design in as much as the tube is being operated off 24vDC and not 240 - 350vDC as in normal tube design practice.
The starved plate voltages coupled with the high gain Tubescreamer type op amp drive circuit, gives a completely different overdrive characteristic to the full voltage all tube design as shown in the link below
cheers
bajaman https://i197.photobucket.com/albums/aa2 ... 1small.jpg
Important: I have found that there is a difference in metal thickness between the Hammond and NSC equivalent cases ( available from Pedal Parts Plus).
Originally i took measurements from the cheaper NSC case which has a much thinner walled and top panel thickness than the Hammond.

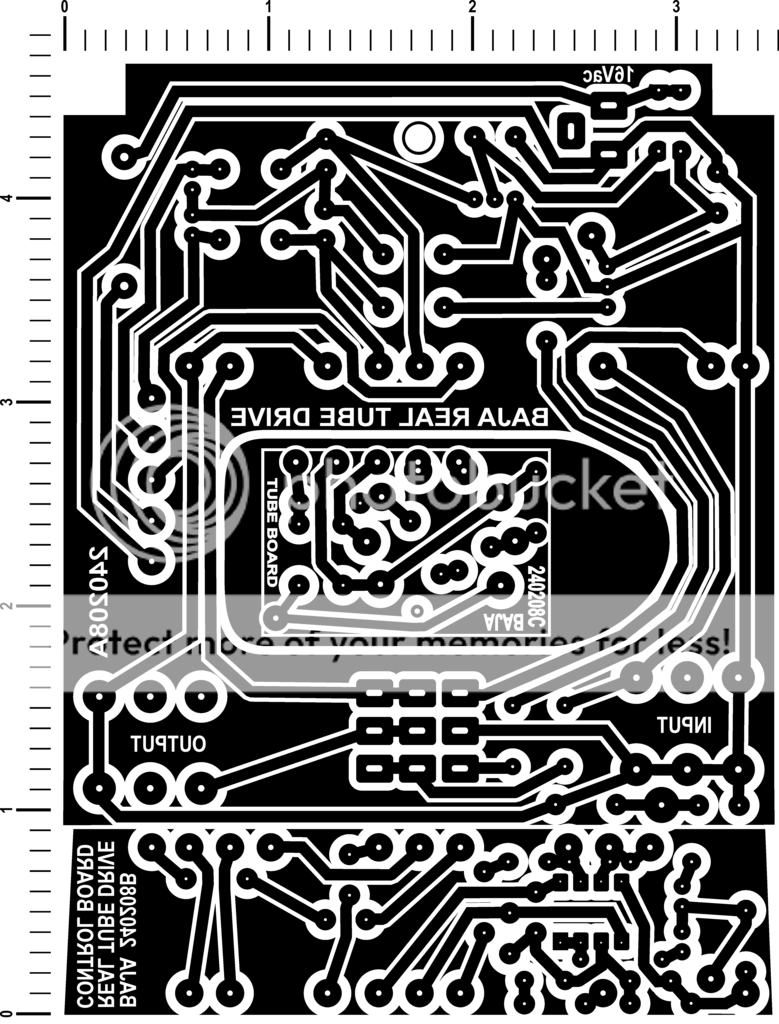

When i tried to fit the assembly in a Hammond case, I found that i could not fit the bottom panel. So, after a wee bit of cursin' I dismantled and trimmed the tube and control boards ( I had to remove at least 1.5mm) i refitted the boards and this time as you can see the case lid was able to fit properly.
I will redraw these boards for those who wish to use Hammond cases, but i would strongly suggest usingf the cheaper thinner NSC cases if you want to use the existing board layouts.
Sorry for any inconvenience.
cheers
bajaman
bajaman wrote:Important: I have found that there is a difference in metal thickness between the Hammond and NSC equivalent cases ( available from Pedal Parts Plus).
..
Sorry for any inconvenience.
cheers
bajaman
I'm sure we can let you off this time, bajaman!
I guess the question is what is the 'void size' for these current layouts, as some of us round these places use other brands which are nearly-but-not-quite-the-same.
Hey - very nice bool - many thanks
BUT - you should repost this in it's own thread - perhaps in the classic stompbox section etc.
It would be a shame if others miss seing this one, because it is in a tube overdrive thread - I am sure Stephen Giles will be most interested
bajaman
Looks cool Baja! How did you cut the tube hole in the large board?
I drilled a couple of holes and fitted a smallhobby hacksaw blade through then carefully cut it out ( the tube board). i use a 3/8 round file to smooth the rough edges off the opening - just one way of doing it
cheers
bajaman
Bajaman, can you perhaps also post the schematics or were they already posted and I missed them?
Thanks for sharing your PCBs. An interesting project, added to my already too large ToDo list.
Bajaman, I'm on the launch pad to build. I've re-read the thread a couple of times, perused the pictures, and I can't find the answer to one question, and it's a showstopper. Even then, I can't guarantee I haven't overlooked it.
- I will give it a try - it looks very interesting
![[smilie=a_hrm.gif]](./images/smilies/a_hrm.gif "a_hrm"){kind=small}
![[smilie=vibes.gif]](./images/smilies/vibes.gif "vibes"){kind=small}
, without the chorus/delay, just the juicy part, with simple toggle-switches
