Post by pfindeis »

i had one but the price was high for such a small simple circuit. very mesy perf build. i have pics but I couldn't trace it. sanded tranny's
Would Like a vero layout or even a schematic if anybody has time or has one.


Thanks for anyone's help
Top
User avatar
Nocentelli
Tube Twister
Information
Posts: 2211
Joined: 09 Apr 2009, 07:06
Location: Leeds, UK
Has thanked: 1115 times
Been thanked: 939 times

Post by Nocentelli »

you'll need to post the pictures if you want someone to try and trace it. i think you need to have 5 posts under your belt before the board allows you to upload pics, just write a couple of nonsense replies here then start a new thread in the boutique section with the pedal name as the title and upload the pics there.
modman wrote: ↑ Let's hope it's not a hit, because soldering up the same pedal everyday, is a sad life. It's that same ole devilish double bind again...
Top
User avatar
pfindeis
Information
Posts: 8
Joined: 29 Dec 2007, 06:37

Post by pfindeis »

Had a lot more posts years ago. I don't know what happened.
Top
User avatar
pfindeis
Information
Posts: 8
Joined: 29 Dec 2007, 06:37

Post by pfindeis »

oh well it doesn't really matter
Top
User avatar
pfindeis
Information
Posts: 8
Joined: 29 Dec 2007, 06:37

Post by pfindeis »

I scoured the internet for info on this and found nothing. I also posted about this pedal in the requests section.
looks to be so simple but i can't figure out the mess that it is. Sounds freaking huge though.
Would it be a 1 knob fuzz with a LED added?

Thanks in advance.

Top
User avatar
mmolteratx
Degoop Doctor
Information
Posts: 508
Joined: 19 Dec 2009, 01:50
Has thanked: 93 times
Been thanked: 618 times

Post by mmolteratx »

What are the transistor, pot and cap values?
Top
User avatar
daimondamps
Information
Posts: 33
Joined: 09 Jun 2014, 08:38
Has thanked: 17 times
Been thanked: 34 times

Post by daimondamps »

WOW :shock: $150.00 for this bayby?? There must be gold somewhere :scratch:

Put the two transistors with some resistors and caps in box - connect randomly and you will get similiar sound :mrgreen:
Top
User avatar
pfindeis
Information
Posts: 8
Joined: 29 Dec 2007, 06:37

Post by pfindeis »

Sorry should put this in first post.

Transistors were sanded.
Electrolitics were 100 uf and 10 uf
caps are a .01, .0047, and .22
I forgot to see what the pot value was.
Top
User avatar
IvIark
Tube Twister
Information
Posts: 2235
Joined: 01 Jan 2008, 23:59
Location: Manchester UK
Has thanked: 561 times
Been thanked: 586 times
Contact:
Contact IvIark

Post by IvIark »

The pot is 100K log
"If anyone is a 'genius' for putting jacks in such a pedal in the only spot where they could physically fit, then I assume I too am a genius for correctly inserting my legs into my pants this morning." - candletears7 - TGP
Top
User avatar
mmolteratx
Degoop Doctor
Information
Posts: 508
Joined: 19 Dec 2009, 01:50
Has thanked: 93 times
Been thanked: 618 times

Post by mmolteratx »

pfindeis wrote:Sorry should put this in first post.

Transistors were sanded.
Electrolitics were 100 uf and 10 uf
caps are a .01, .0047, and .22
I forgot to see what the pot value was.
Gracias. Pot is actually show in one of the pics, I just missed it. Can you post a close up of that mess of resistors on top and a shot of the bottom with as many wires out of the way as possible and no flash? First stage is pretty much a Bazz Fuss with an LED, but I can't see a few things going on after that.
.
Top
User avatar
pfindeis
Information
Posts: 8
Joined: 29 Dec 2007, 06:37

Post by pfindeis »

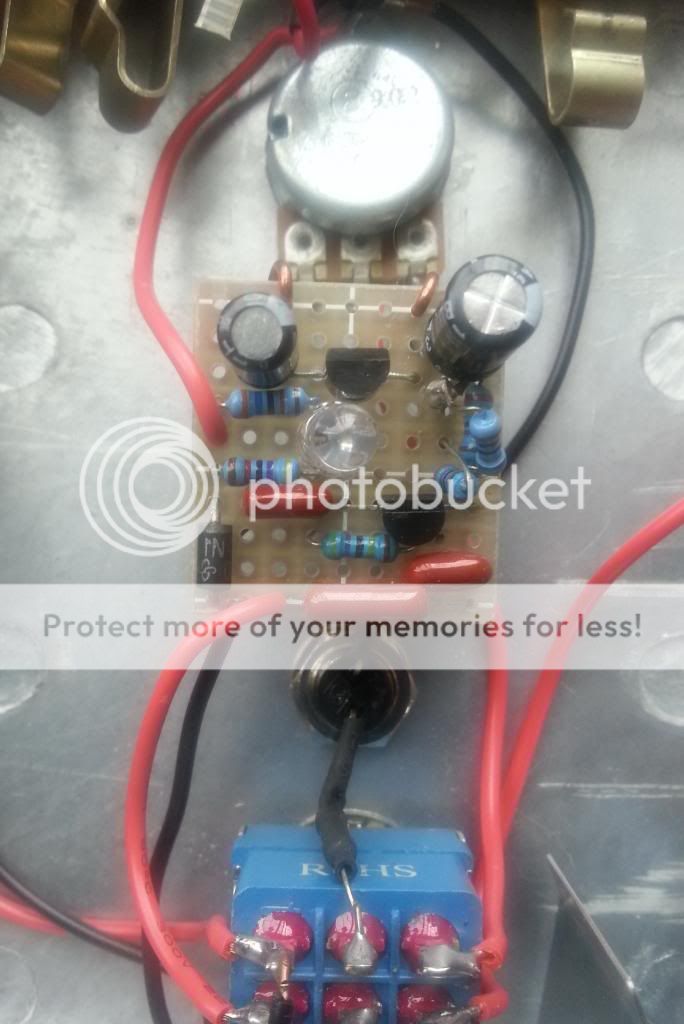

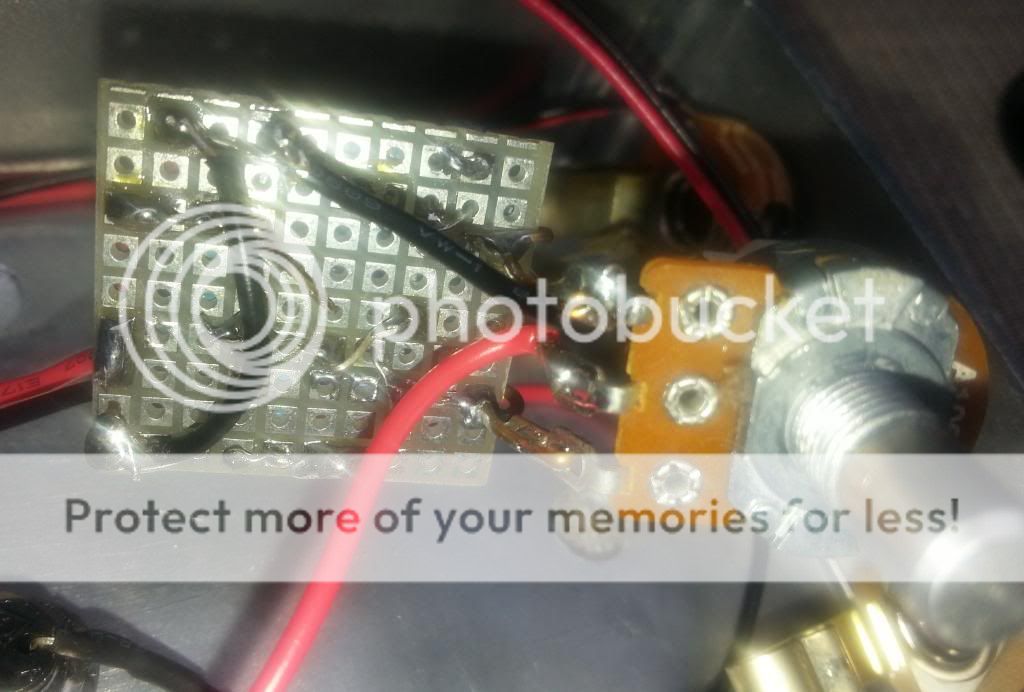

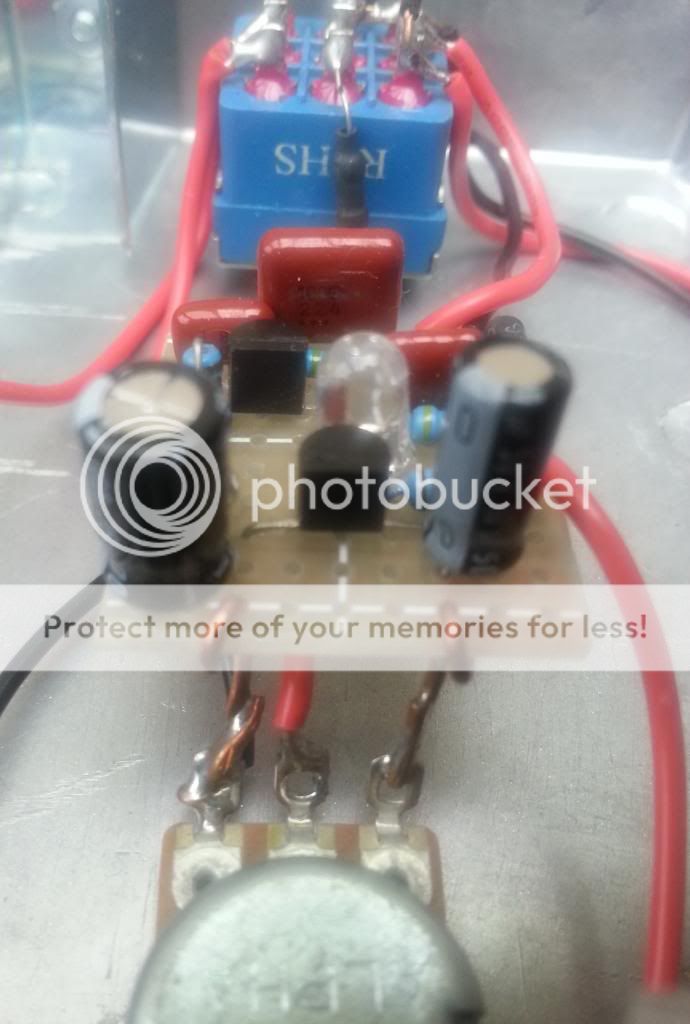

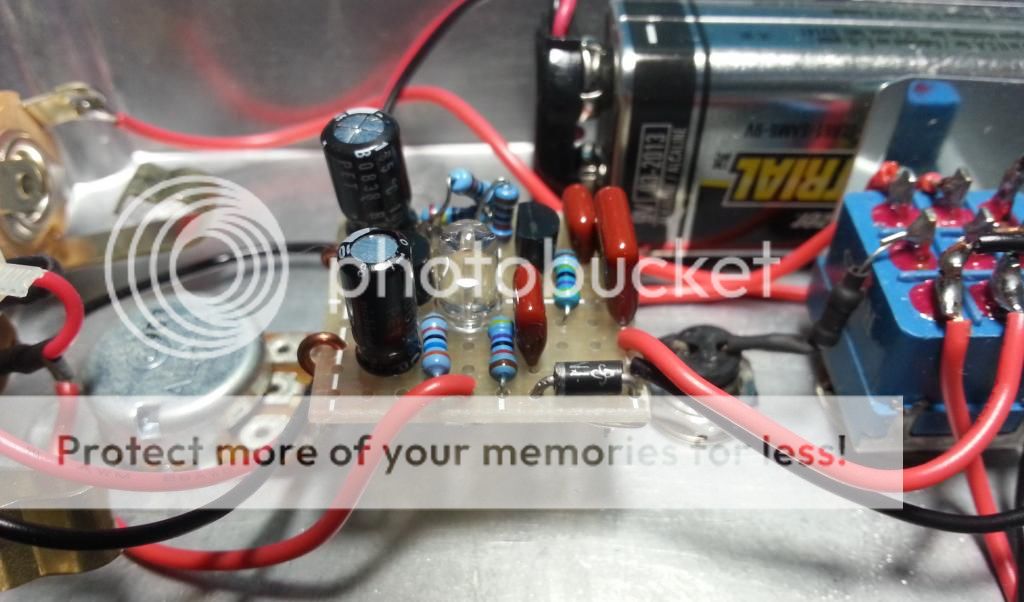

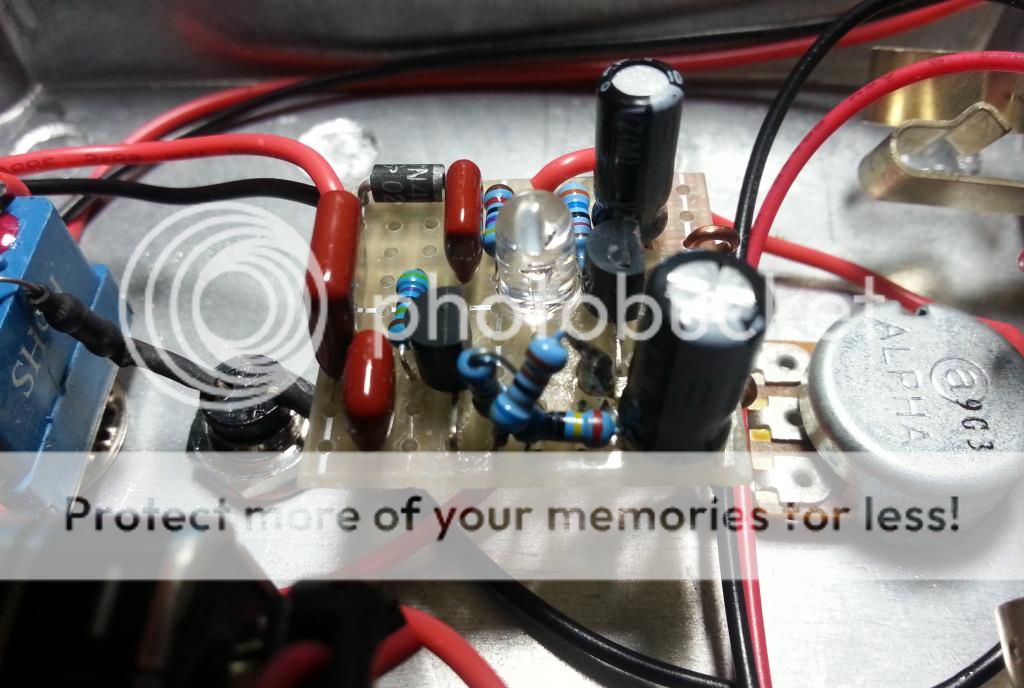

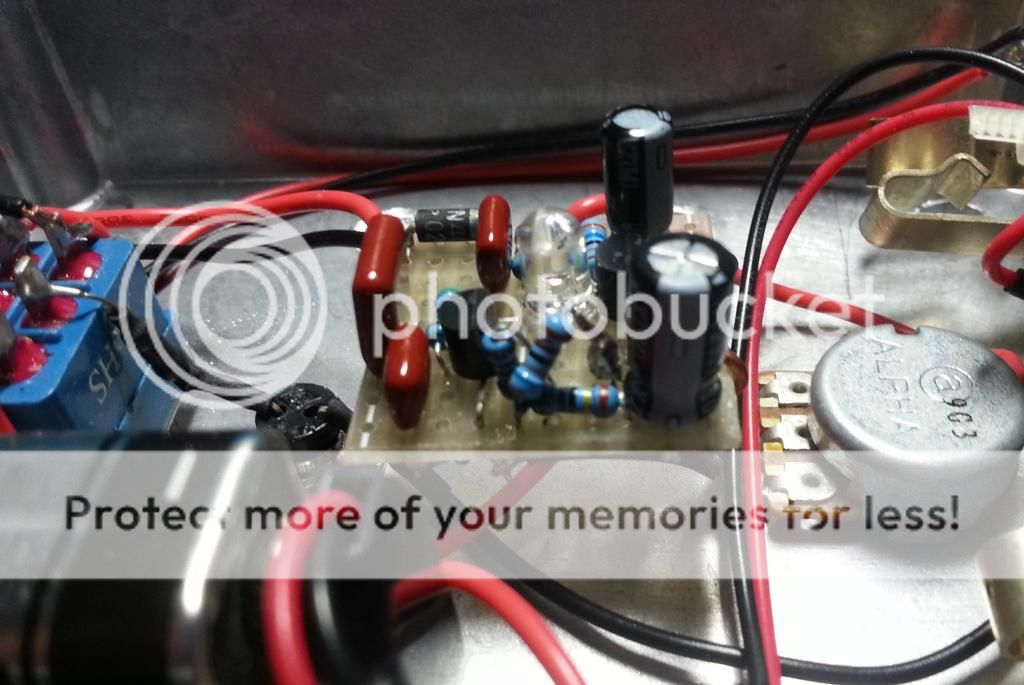

all i have are here. Not sure if they will help.
https://s43.photobucket.com/user/vtwin1 ... t=3&page=1

Thanks
Top
