Death by Audio - The Flaming Lips Space Ring

General documentation, gut shot, schematic links, ongoing circuit tracing, deep thoughts ... all about boutique stompboxes.
Post Reply
User avatar
jrfox92
Breadboard Brother
Information
Posts: 70
Joined: 11 Jun 2014, 04:46
Completed builds: Death by Audio Fuzz War
Electro-Harmonix Big Muff Pi V5
Skreddy Lunar Module
Colorsound Overdriver
Electro-Harmonix Big Muff Pi Multi-Diode and Feedback Mod
Electro-Harmonix Holy Grail Room Reverb and Reverb Length Mod
Boss DS-1 Synth Circuit Bend
Location: Akron, Ohio
Has thanked: 3 times
Been thanked: 54 times

Post by jrfox92 »

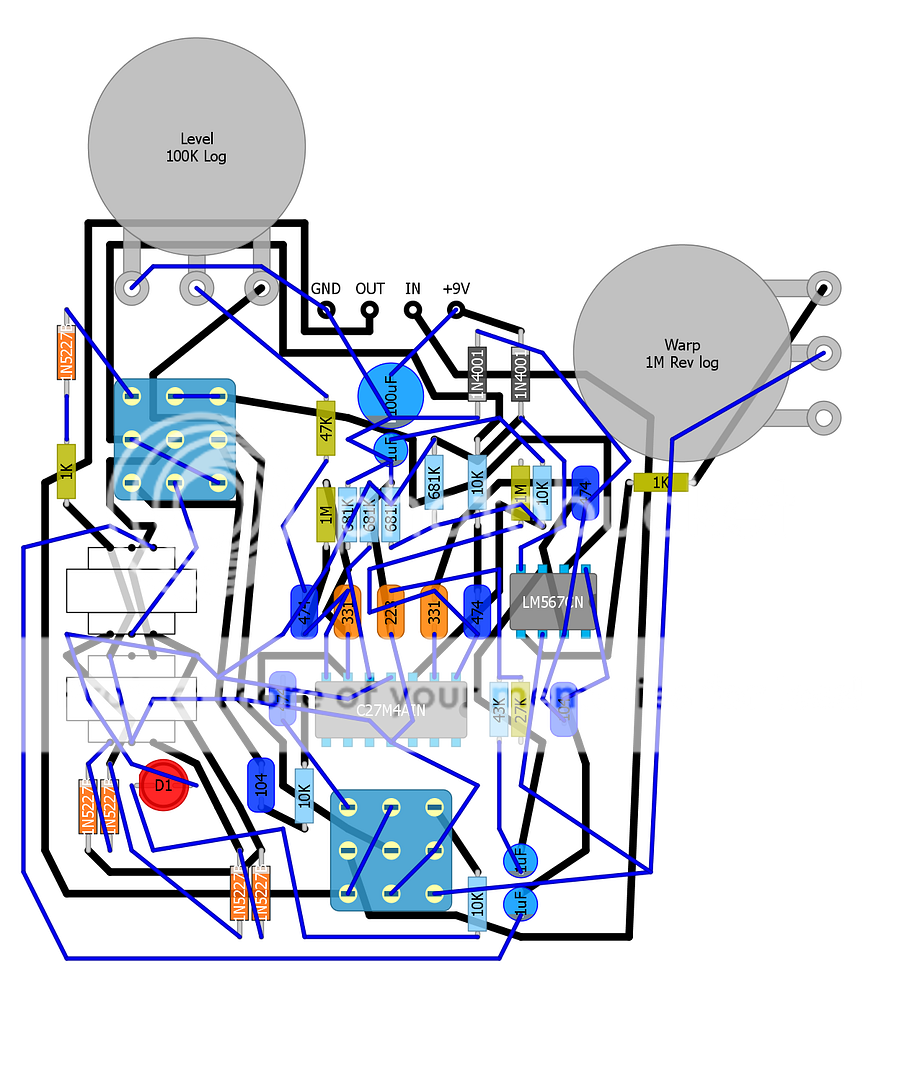

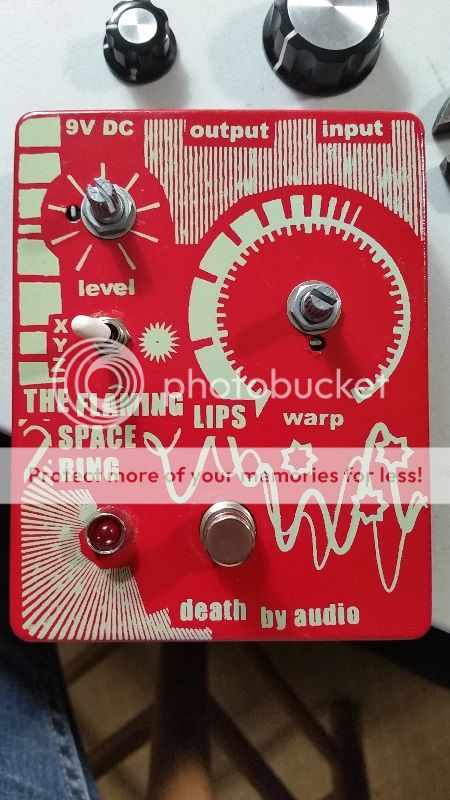

I have a few pictures and I traced out the PCB layout with DIYLC.
I'll try to make an actual schematic and vero in the next week or so, but I might get caught up with work, so no promises.
I checked some of the harder to notice connections with a Voltmeter, so I'm 95% sure that everything's correct. If not, maybe Glass Hero will point it out.
Black is the top trace, blue is the bottom.
In case anyone tries to trace it themselves to verify my layout or whatever, there's a hidden resistor underneath the Warp pot.

User avatar
Lubdar
Information
Posts: 9
Joined: 12 Oct 2013, 16:42
Has thanked: 5 times

Post by Lubdar »

For some reason I didn't see the post at the very top of the screen and was starting to trace it out and noticed "hey what's that resistor under there".

User avatar
Lubdar
Information
Posts: 9
Joined: 12 Oct 2013, 16:42
Has thanked: 5 times

Post by Lubdar »

That's cool software you used, I've never used it, but did you just lay down all the parts and connect the traces as you saw them on the pcb?

User avatar
jrfox92
Breadboard Brother
Information
Posts: 70
Joined: 11 Jun 2014, 04:46
Completed builds: Death by Audio Fuzz War
Electro-Harmonix Big Muff Pi V5
Skreddy Lunar Module
Colorsound Overdriver
Electro-Harmonix Big Muff Pi Multi-Diode and Feedback Mod
Electro-Harmonix Holy Grail Room Reverb and Reverb Length Mod
Boss DS-1 Synth Circuit Bend
Location: Akron, Ohio
Has thanked: 3 times
Been thanked: 54 times

Post by jrfox92 »

Lubdar wrote:That's cool software you used, I've never used it, but did you just lay down all the parts and connect the traces as you saw them on the pcb?
I actually traced out part of it with a multimeter, like the traces underneath the switches, IC's, and transformers. I'm not sure how accurate it is, but I'm not quite ready to start removing components yet.

User avatar
jrfox92
Breadboard Brother
Information
Posts: 70
Joined: 11 Jun 2014, 04:46
Completed builds: Death by Audio Fuzz War
Electro-Harmonix Big Muff Pi V5
Skreddy Lunar Module
Colorsound Overdriver
Electro-Harmonix Big Muff Pi Multi-Diode and Feedback Mod
Electro-Harmonix Holy Grail Room Reverb and Reverb Length Mod
Boss DS-1 Synth Circuit Bend
Location: Akron, Ohio
Has thanked: 3 times
Been thanked: 54 times

Post by jrfox92 »

Holy shit, I started trying to work on a schematic for this today and it is probably the most confusing circuit ever.
There's a million connections for a million different spots and I seriously wonder how the hell they ever managed to design it in the first place.

User avatar
FiveseveN
Cap Cooler
Information
Posts: 569
Joined: 25 Oct 2009, 21:20
Location: Romania
Has thanked: 196 times
Been thanked: 106 times
Contact:

Post by FiveseveN »

jrfox92 wrote:how the hell they ever managed to design it
Like they always do:
Ignorance more frequently begets confidence than does knowledge. (Charles Darwin)
