Post by borislavgajic »

I made this amp 3 Years ago........4X ecc83, 2X EL34(Ei Nis...Yugoslavia),and rectifier tube.
build it completely from scratch .....but use good materials(stainless steel,wood-same kind as my guitar 8) )

...preamp is 4 paralell channels .....but can be switched into 2 +2 in serie(have 2 relays).....

...to be honest it is little bit chaotic(not bad sounding...no hum at all)....but I want to rebuild preamp section.................have 3xECC83 to do that (one is used for phase inverter)....

SO DO YOU HAVE ANY SUGESTIONS FOR BEST GUITAR PREAMP?

BORIS
Attachments
Top
User avatar
soulsonic
Old Solderhand
Information
Posts: 3880
Joined: 27 Jun 2007, 03:38
my favorite amplifier: Traynor YVM-1
Completed builds: too many!
Location: Morgantown, WV
Has thanked: 179 times
Been thanked: 458 times
Contact:
Contact soulsonic

Post by soulsonic »

Nice! I really like the perforated metal case. It looks heavy!
My first builds looked chaotic inside too - but as long as it works (and as long as you can take it out of the house and it still works...). With good layout planning ahead of time, the preamp rebuild can make the inside more neat and clean.

Favorite preamps? :hmmm:
I've built several Soldano style amps, and that preamp is one of my favorites; especially the heavy crunch it can get, and it sounds great with an EL34 power amp. The full normal two channel Soldano preamp requires more preamp tubes than you have available here, but you could configure it to be the Clean/Crunch side (as two switchable channels), and if you drop the Soldano's FX loop, you can do it easily with 3 preamp tubes (two for the preamp, and one for the Phase Inverter). With some good switching, you can have two full channels with separate tone controls and master volumes, while sharing the same tubes.
I will draw something up so you can see what I mean.
"Analog electronics in music is dead. Analog effects pedal design is a dead art." - Fran
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

yes please post some your schematics ... :)
and there are 4 preamp tubes ...(3 for preamp,and one for phase inverter)

....I was thinking to add spring reveerb ( have one tank from fender twin reverb)....5 months ago I made stand alone fender tube reverb unit for friend.....so I an thinking to add one EL84+ small output trafo to drive reverb (like in VIBROKING)?.........

.....What do you think about old PREMIER reverb unit(there is one tube less)........


thanks
boris
Top
User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

Is it a Toaster??? :lol: :lol: :lol:
I bet you could fry some serious toasties in that!!
Just kidding :hug: - looks like it came straight from that old science fiction movie - Metropolis :wink:
I love it :applause: :applause: :applause:
bajaman
be kind to all animals - especially human beings
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

TOOOOASTERRR .......... [smilie=new_microwave.gif]
oooo Baja man You are smoke comming out of it 3weeks ago!!! And I mean smooke.......(it was only LED powering wire)


I like hearing from You and Soulsonic.......but you did not make any suggestions about new preamp schematic.......I could use your help and experience!(if I recall you made tube projects from age of 9 years old :idea: !)

...and I am wondering about that photo of you......mus ask ......What are you drinking...(vino or dark beer?) [smilie=wine.gif] [smilie=rlp_smilie_242.gif] [smilie=drink.gif] ........anyhow CHEERS

boris
Top
User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

vino :wink:
bajaman
be kind to all animals - especially human beings
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

in vino veritas!

:!:
Top
User avatar
RnFR
Old Solderhand
Information
Posts: 4880
Joined: 09 Jan 2008, 06:02
my favorite amplifier: Traynor YBA-III, Fender Super Six
Completed builds: custom fuzz.
Location: Inner Earth
Has thanked: 139 times
Been thanked: 133 times
Contact:
Contact RnFR

Post by RnFR »

that looks absolutely killer! full on scifi style. it really does look straight out of metropolis!
"You've converted me to Cubic thinking. Where do I sign up for the newsletter? I need to learn more about how I can break free from ONEism Death Math." - Soulsonic

Blog-APOCALYPSE AUDIO
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

....now I have to see that movie :block:
Top
User avatar
bancika
Resistor Ronker
Information
Posts: 279
Joined: 02 Jan 2008, 02:24
Has thanked: 16 times
Been thanked: 88 times

Post by bancika »

Zdravo Borislave!
I recently built a SLO clone, three channels, two footswitchable - great sound.
Cheers
The new version of DIY Layout Creator is out, check it out - https://github.com/bancika/diy-layout-creator
Check out my site with DIY gutars, amps and pedals http://diy-fever.com
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

Zdravo Bancika!
Thanks man!... :thumbsup
Top
User avatar
seniorLoco
Resistor Ronker
Information
Posts: 343
Joined: 05 Nov 2007, 09:43
Location: ASIA
Been thanked: 11 times

Post by seniorLoco »

Just be reminded that more gain = more noise ...so you may need to be neat....especially on the SLO.
:D

Have a look at some Hiwatt gain channels here
It's has some of that ol school OD ...and it's a good start.

The Bogner Ecstasy channel 2 and 3 is another great candidate imo...
"Curiosity may have killed the cat, but it saved the mice, who ate the cheese."
Top
User avatar
borislavgajic
Opamp Operator
Information
Posts: 1542
Joined: 27 Feb 2008, 14:23
Completed builds: ...script phase90,ETI phaser,Ross phaser,mutronC200,vox wah,WH10,FW-3,mutronIII,DrQuack,Penfoldautowah,Tubezipper,
Dipthonizer,seekwah,Talkingpedal,morleywha
...soulpreacher,dynacomp,compulator
...buzzaround,fuzzfactory,screwdriver,sho,superdouper,St-9,RogerMayer octavia,Tychobrahe octavia,paralelluniverse,string damper,slowgear
...CE-2,ibanez fL301,EH theCloneTheory
EHX bassmicrosynth,EHX EnglishMuffin,Tube Phaser,springtubereverb ,greyDOD,FulldriveII mosfet,OCD,VOX repeat percussion,RingStinger,Meatball,12stage phaser....
Location: Sombor , Serbia
Has thanked: 131 times
Been thanked: 277 times

Post by borislavgajic »

thanks man.......I am looking for the clean preamp ..more than dist.......(for distorzion I have build buzzaround clone :) and fuzzfactory,and tubezipper+superhardon.......)

when I find time I will make something simple...simple simple,but with great sound! and old looking.......perheaps to use BLACKFINGER tube compressor as preamp?modify that ( some tone controlls?)...or tube EQ............
Top
User avatar
seniorLoco
Resistor Ronker
Information
Posts: 343
Joined: 05 Nov 2007, 09:43
Location: ASIA
Been thanked: 11 times

Post by seniorLoco »

something simple...simple simple,but with great sound!
JTM45 8)
"Curiosity may have killed the cat, but it saved the mice, who ate the cheese."
Top
User avatar
noelgrassy
Resistor Ronker
Information
Posts: 388
Joined: 28 Nov 2007, 02:43
my favorite amplifier: MOTS Magnatone & Trainwreck
Completed builds: Tonebender Mk II w/ 3 OC75's, Burns BuzzAround w/NKT 275,Rangemaster w/ OC44, Fuzz Face w/ SKS363's, CJOD, Harmonic Percolator w/2N404A & 2N3635(vintage correct box,sliding pots, 1%glass resistors),Stack-O-Dimes & Whipple Wahs,
Location: Vacuum Tube Valley, Cali
Has thanked: 11 times
Been thanked: 3 times

Post by noelgrassy »

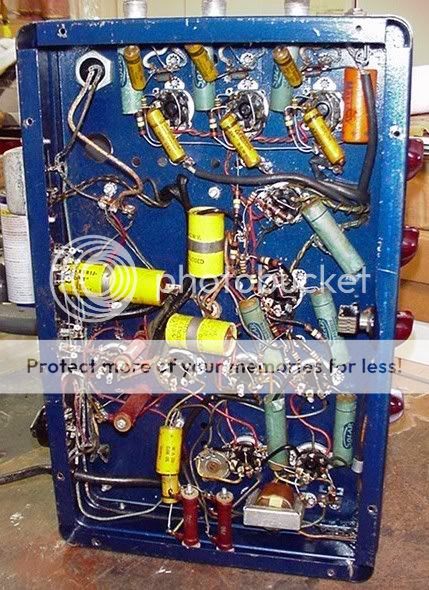

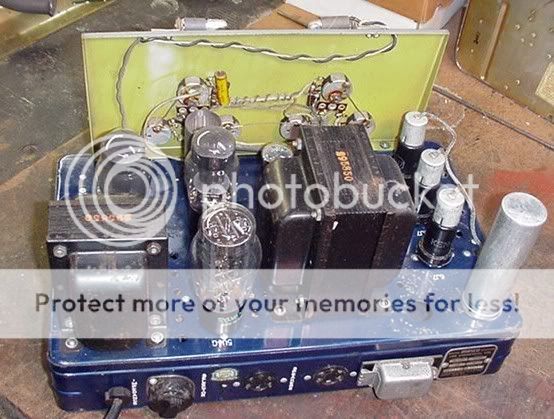

You didn't mention what kind of Voltages the amp sees. There's a lot of tones in one of these.
