Oscar Tartaglia, La chitarra con il fuzz, Radio Elettronica, May 1978 🇮🇪

Free online ressources on guitars, amps, effects, guitar technique and more. Dedicated to the fond memory of its founder SPeter Davidoff.
Post Reply
User avatar
modman
a d m i n
Information
Posts: 4888
Joined: 19 Jun 2007, 16:57
Has thanked: 4392 times
Been thanked: 2130 times

Post by modman »

Fuzz unit with treble/bass tone control using two 741 opamps.
Full article in PDF:
Radio Elettronica 1978_05 Double 741 Distortion.pdf
(884.36 KiB) Downloaded 123 times

Radio Elettronica 1978_05 Double 741 Distortion 02.jpg
Radio Elettronica 1978_05 Double 741 Distortion 03.jpg
Radio Elettronica 1978_05 Double 741 Distortion 04.jpg
Radio Elettronica 1978_05 Double 741 Distortion 05.jpg
Radio Elettronica 1978_05 Double 741 Distortion 06.jpg
Please, support freestompboxes.org on Patreon for just 1 pcb per year! Or donate directly through PayPal

User avatar
CheapPedalCollector
Resistor Ronker
Information
Posts: 399
Joined: 19 Oct 2020, 15:15
Has thanked: 452 times
Been thanked: 147 times

Post by CheapPedalCollector »

Oh look, a Timmy/BB

User avatar
Manfred
Tube Twister
Information
Posts: 1936
Joined: 04 Apr 2009, 23:42
Has thanked: 1668 times
Been thanked: 1344 times

Post by Manfred »

I made this Radio Elettronica 1978_05 Double 741 Distortion PCB Clone:
Radio Elettronica 1978_05 Double 741 Distortion Layout.JPG
Ready-to-print PDF-files: SprintLayout6.0-file:
RE 1978_05 Double 741 Distortion.zip
(15.42 KiB) Downloaded 56 times

User avatar
ppluis0
Diode Debunker
Information
Posts: 915
Joined: 14 Jul 2010, 18:33
Location: Argentina
Has thanked: 127 times
Been thanked: 299 times

Post by ppluis0 »

Hi Manfred,
I really like so much your PCB designs that have curved copper tracks !

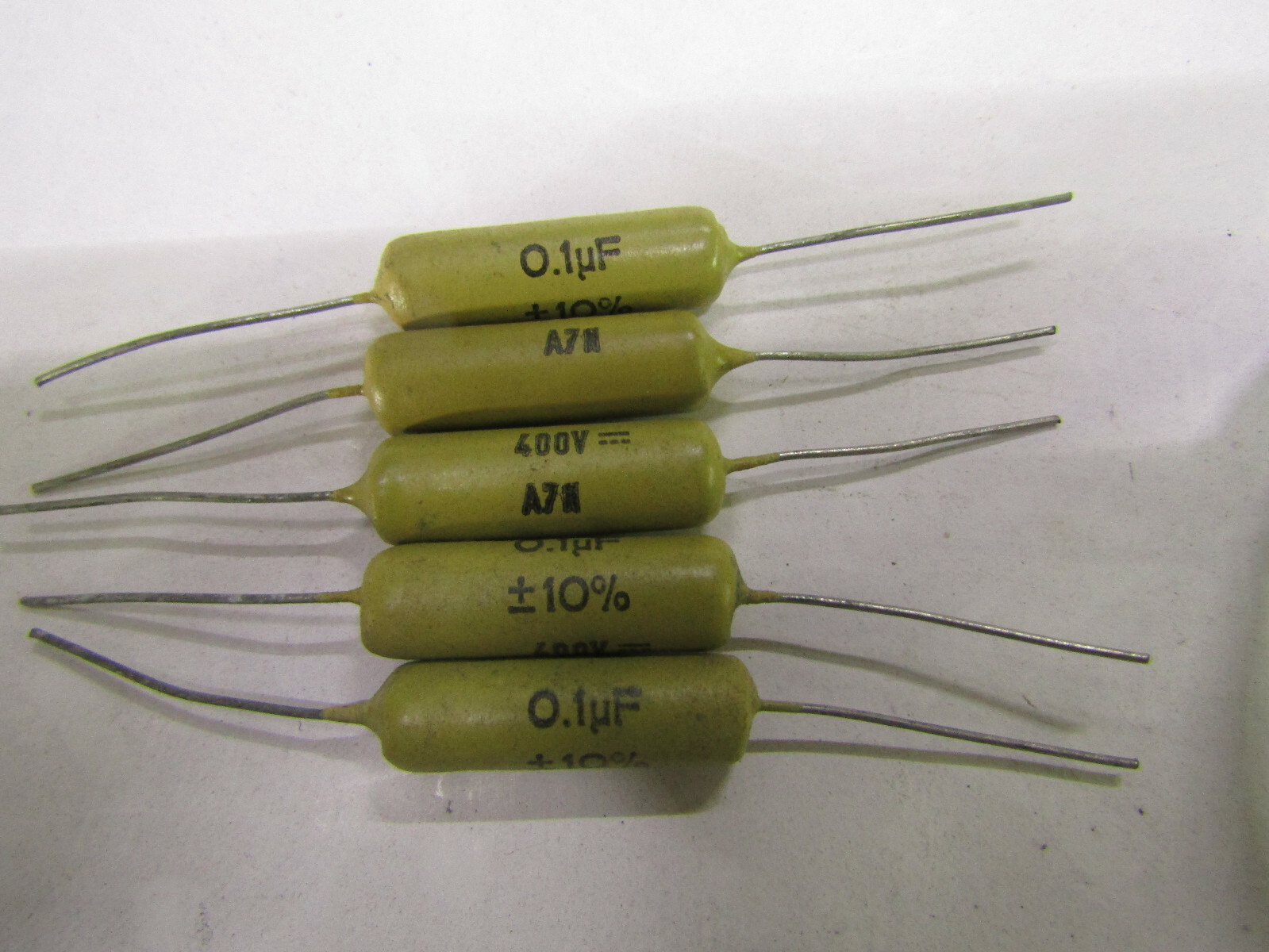

Also it's a great detail to assign enough space to use mustard capacitors 8)


Off topic: there is an image of the Phillips machine that manufacture those kind of component:


Cheers,
Jose
Last edited by ppluis0 on 21 Jan 2022, 00:02, edited 1 time in total.

User avatar
modman
a d m i n
Information
Posts: 4888
Joined: 19 Jun 2007, 16:57
Has thanked: 4392 times
Been thanked: 2130 times

Post by modman »

I made a stupid mistake, the chip is of course https://www.uni-ulm.de/fileadmin/websit ... /LM748.pdf

But they probably are compatible...

Jose, I had never seen that machine before. Thanks for posting that... It reminded me of something I wanted to post, but haven't yet... hang on! Yes, mustard capacitors are really high quality they seem to never go bad.
Please, support freestompboxes.org on Patreon for just 1 pcb per year! Or donate directly through PayPal

User avatar
ppluis0
Diode Debunker
Information
Posts: 915
Joined: 14 Jul 2010, 18:33
Location: Argentina
Has thanked: 127 times
Been thanked: 299 times

Post by ppluis0 »

modman wrote: 20 Jan 2022, 19:04 Jose, I had never seen that machine before. Thanks for posting that... It reminded me of something I wanted to post, but haven't yet... hang on! Yes, mustard capacitors are really high quality they seem to never go bad.
I just found that photograph in the web today and consider attach it to this thread.
I have admiration to see how the technology of the components evolved.

Cheers,
Jose
