Darkglass - Intelligent Footswitch

General documentation, gut shot, schematic links, ongoing circuit tracing, deep thoughts ... all about boutique stompboxes.
Post Reply
User avatar
Matlevo12
Breadboard Brother
Information
Posts: 68
Joined: 06 Jul 2019, 06:33
Has thanked: 25 times
Been thanked: 54 times

Post by Matlevo12 »

Hi !
I know... but isnit it, technically, a stompbox too ? :)

Anyway, to anyone wondering if they could make a diy clone of it :

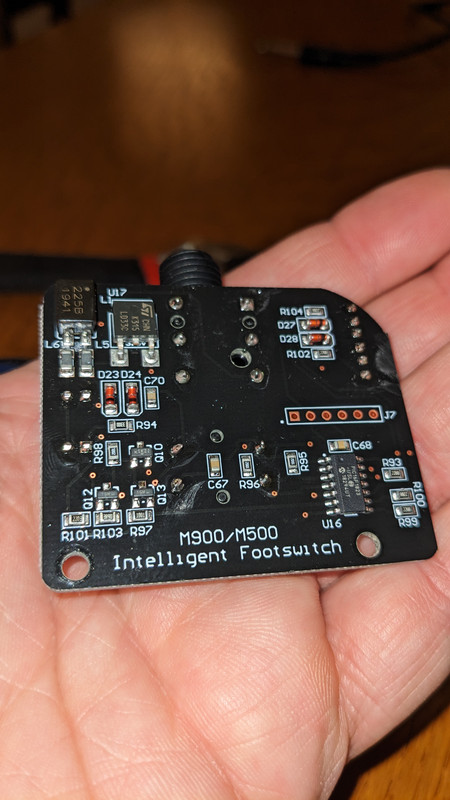

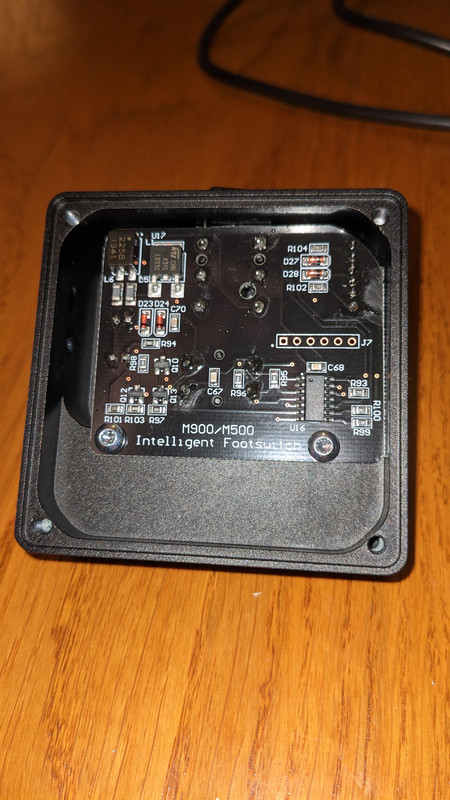

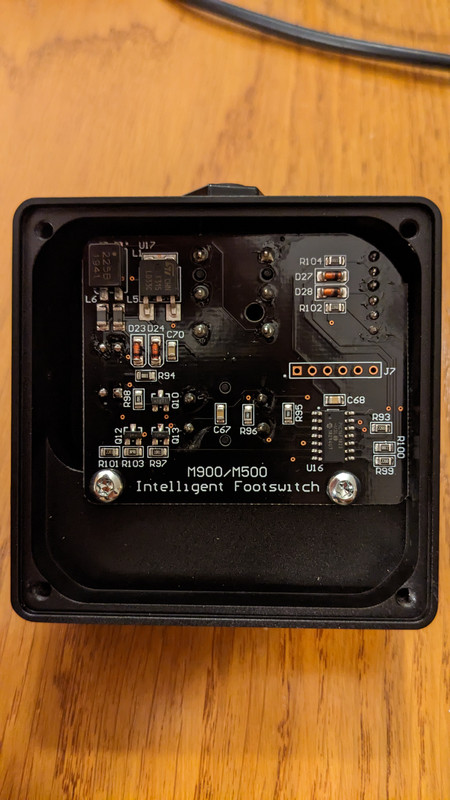

The PIC16 probably answers by itself :)
Top
User avatar
smear
Information
Posts: 23
Joined: 26 Mar 2018, 05:09
Has thanked: 4 times
Been thanked: 9 times

Post by smear »

why put so much electronics in a footswitch? why not stick all that stuff in the amp? or better yet, just let the microcontroller in the amp listen for the footswitch turning on and off, instead of decoding the "proprietary communication protocol." i guess it forces you to buy their footswitch...
