Also I think good idea could be jumpering or lowering 68K on output and rising Voulme pot to 50K or 100K to rise pedal total volume.
HiwattBob mentioning in demo that pedal is pretty quitet and Volume knob must be dimed.
Top
User avatar
bluesbreaker62
Information
Posts: 22
Joined: 27 Apr 2008, 14:35
Has thanked: 11 times
Been thanked: 31 times

Post by bluesbreaker62 »

Hey, Thanks for posting the schematic Ed,

I tried to build one of those some time ago, based on the pics,
it didn't work, so i put it away and forgot about it...

Just pulled it out again after seeing the schematic...
never noticed the bce pinout of those 2n5173 :slap:

Flipped the transistors, and it works :oops:
Still needs some tweaking though.

Here's a pic, used the pcb layout on perfboard...

Top
User avatar
sinner
Old Solderhand
Information
Posts: 4710
Joined: 06 Nov 2008, 17:16
Location: ...no more
Has thanked: 1031 times
Been thanked: 907 times

Post by sinner »

beedotman wrote:
sinner wrote:here you go, I like it better that way, I hate to place trimmers
One correction should be made - cap on Q1 emmiter, in left down corner of vero should be 1nF instead 10nF according to Jerms schematic.

I haven't seen this post, fixed now.
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

bluesbreaker62 wrote:Hey, Thanks for posting the schematic Ed,

I tried to build one of those some time ago, based on the pics,
it didn't work, so i put it away and forgot about it...

Just pulled it out again after seeing the schematic...
never noticed the bce pinout of those 2n5173 :slap:

Flipped the transistors, and it works :oops:
Still needs some tweaking though.

Here's a pic, used the pcb layout on perfboard...

looks very nice! :thumbsup
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

sinner wrote:
beedotman wrote:
sinner wrote:here you go, I like it better that way, I hate to place trimmers
One correction should be made - cap on Q1 emmiter, in left down corner of vero should be 1nF instead 10nF according to Jerms schematic.

I haven't seen this post, fixed now.
:lol:
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

sinner wrote:
beedotman wrote:
sinner wrote:here you go, I like it better that way, I hate to place trimmers
One correction should be made - cap on Q1 emmiter, in left down corner of vero should be 1nF instead 10nF according to Jerms schematic.

I haven't seen this post, fixed now.

Looks great! :applause:
Top
User avatar
sinner
Old Solderhand
Information
Posts: 4710
Joined: 06 Nov 2008, 17:16
Location: ...no more
Has thanked: 1031 times
Been thanked: 907 times

Post by sinner »

beedotman wrote:
sinner wrote:
beedotman wrote:
sinner wrote:here you go, I like it better that way, I hate to place trimmers
One correction should be made - cap on Q1 emmiter, in left down corner of vero should be 1nF instead 10nF according to Jerms schematic.

I haven't seen this post, fixed now.

Looks great! :applause:
Thanks sweetheart :hug: If I post it to torg, could you do description of it? It seems like you know more about this one than I
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

Will send it to You in the evening, ok?
Top
User avatar
sinner
Old Solderhand
Information
Posts: 4710
Joined: 06 Nov 2008, 17:16
Location: ...no more
Has thanked: 1031 times
Been thanked: 907 times

Post by sinner »

beedotman wrote:Will send it to You in the evening, ok?

Awsomeski!
Top
User avatar
sinner
Old Solderhand
Information
Posts: 4710
Joined: 06 Nov 2008, 17:16
Location: ...no more
Has thanked: 1031 times
Been thanked: 907 times

Post by sinner »

Our favorite beta tester Abraham just emailed me today with picts of his build. He loves it, so call it verified
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

sinner wrote:Our favorite beta tester Abraham just emailed me today with picts of his build. He loves it, so call it verified
I saw it, nice build! :thumbsup
He should post pics here!
Top
User avatar
agoldoor
Breadboard Brother
Information
Posts: 113
Joined: 26 May 2011, 04:37
Has thanked: 39 times
Been thanked: 21 times

Post by agoldoor »

Oops, good point Bee•Man!
Pics:
photo (18).JPG
photo (18).JPG (41.95 KiB) Viewed 2141 times
photo (19).JPG
photo (19).JPG (62.25 KiB) Viewed 2141 times
Top
User avatar
beedotman
Diode Debunker
Information
Posts: 840
Joined: 28 Jun 2010, 10:24
Has thanked: 402 times
Been thanked: 393 times
Contact:
Contact beedotman

Post by beedotman »

:thumbsup nice!
Top
User avatar
pedalfreakFX
Information
Posts: 10
Joined: 10 Nov 2012, 22:19

Post by pedalfreakFX »

Is this a 9V negative center powered pedal?

Also (newbie ?) how can I tell when looking at a schematic if it's 9V negative center, like a Fuzz Face?
Top
User avatar
pedalfreakFX
Information
Posts: 10
Joined: 10 Nov 2012, 22:19

Post by pedalfreakFX »

pedalfreakFX wrote:Is this a 9V negative center powered pedal?

Also (newbie ?) how can I tell when looking at a schematic if it's 9V negative center, like a Fuzz Face?
Sorry, meant is this a 9V Positive Center .
Top
User avatar
tomk
Information
Posts: 3
Joined: 25 Mar 2013, 03:51
Has thanked: 1 time
Been thanked: 1 time

Post by tomk »

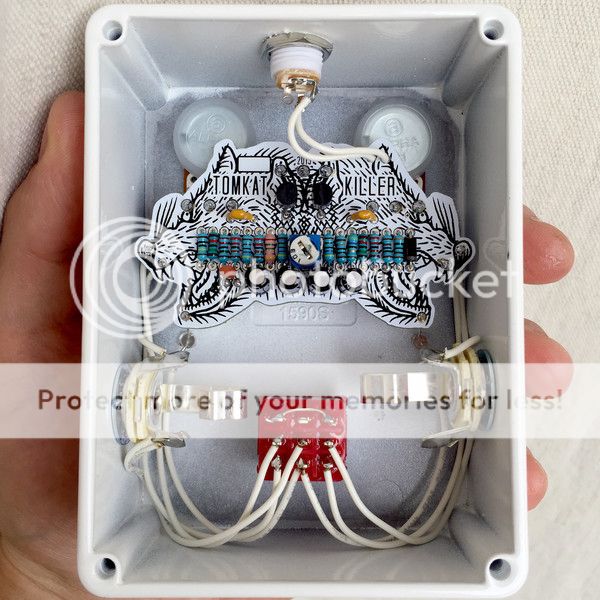

Hey everyone. I know this is an old thread and all but I'm a small pedal builder from brooklyn, ny and I make a clone of the fuzz-stainer. Heres a few pics.

feel free to ask me any questions about it.
Top
User avatar
Nocentelli
Tube Twister
Information
Posts: 2211
Joined: 09 Apr 2009, 07:06
Location: Leeds, UK
Has thanked: 1115 times
Been thanked: 939 times

Post by Nocentelli »

tomk wrote:feel free to ask me any questions about it.
Why don't you use the unused lug of the footswitch to ground the input in bypass?
modman wrote: ↑ Let's hope it's not a hit, because soldering up the same pedal everyday, is a sad life. It's that same ole devilish double bind again...
Top
User avatar
tomk
Information
Posts: 3
Joined: 25 Mar 2013, 03:51
Has thanked: 1 time
Been thanked: 1 time

Post by tomk »

Nocentelli wrote:
tomk wrote:feel free to ask me any questions about it.
Why don't you use the unused lug of the footswitch to ground the input in bypass?
I haven't had any noise problems in bypass and haven't had any reports from any of my customers so I wasn't doing it for a while. Probly wouldn't hurt to do it tho huh?
Top
User avatar
johnk
Resistor Ronker
Information
Posts: 283
Joined: 05 Apr 2010, 07:33
Has thanked: 36 times
Been thanked: 293 times

Post by johnk »

I finished mine the other day. IMO, it's a great sounding pedal. I used a relayed true bypass in it.


Top
User avatar
tomk
Information
Posts: 3
Joined: 25 Mar 2013, 03:51
Has thanked: 1 time
Been thanked: 1 time

Post by tomk »

johnk wrote:I finished mine the other day. IMO, it's a great sounding pedal. I used a relayed true bypass in it.

[ Image ]

[ Image ]
Looks great john! You've really inspired a lot of my tidy building habits.
Is that the Tim Webster relay layout? Does it work good?
Top
