VibraTone - Fender Brownface Vibrato

Original effects with schematics, layouts and instructions, freely contributed by members or found in publications. Cannot be used for commercial purposes without the consent of the owners of the copyright.
Post Reply
User avatar
markm
Diode Debunker
Information
Posts: 787
Joined: 26 Jun 2007, 14:41
Location: U.S.A.
Been thanked: 10 times

Post by markm »

Well, here's a great sounding true Vibrato circuit.
This is the finalized version The volume drop issues that some
experienced with weaker FETS has been addressed and now a trimpot
is on the output to control the level of the engaged effect.
I thought I may as well post it in this section here as I have been Banned over at diystompboxes.

Have a look;

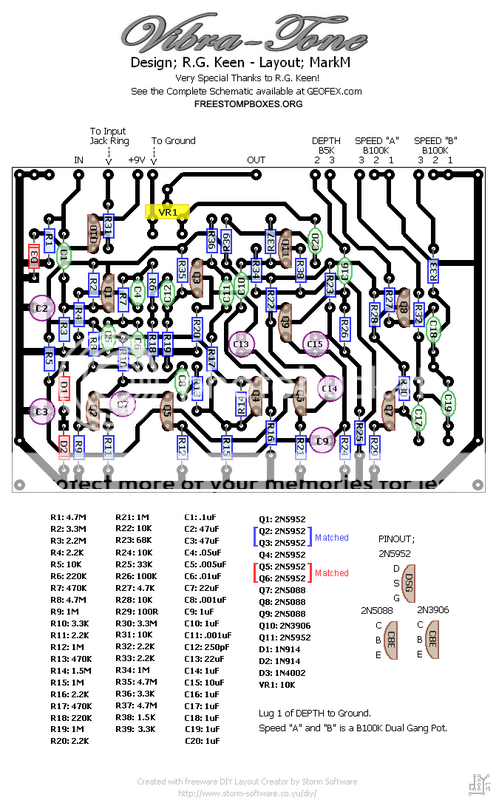

Layout;

https://i17.photobucket.com/albums/b72/ ... LAYOUT.png

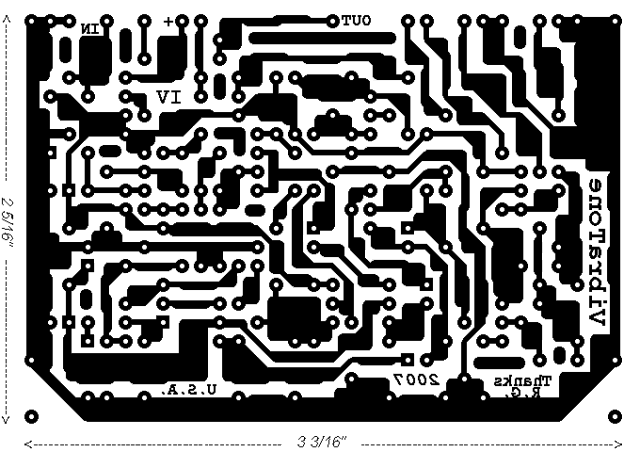

Transfer;

https://i17.photobucket.com/albums/b72/ ... ANSFER.gif

Enjoy!
Join together with the "Banned"!
