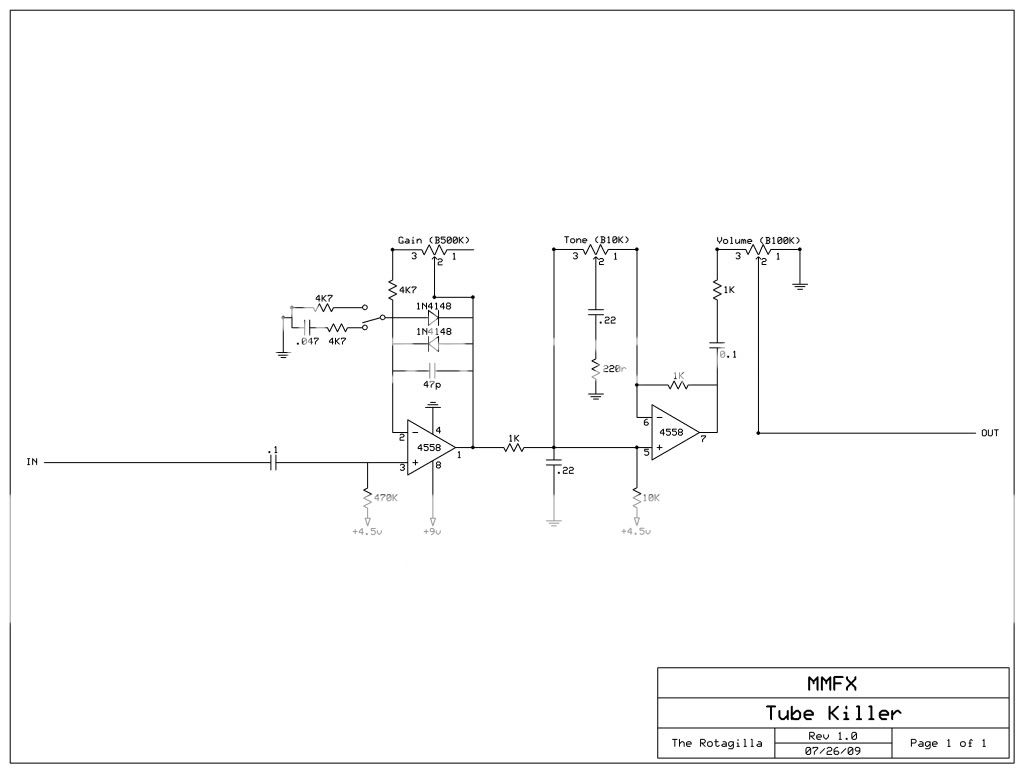

MMFX Tube Killer schematic.
Posted: 26 Jul 2009, 22:45
by The Rotagilla
This was more about me getting the hang of Express PCB's schematic software than an earth shaking revelation. There may be drawing errors but the values are correct.
Re: MMFX Tube Killer schematic.
Posted: 29 Jul 2009, 14:53
by modman
Still, thanks for letting us be a part of the experience, whatever its nature
I was just wondering what PaulC would call this
Re: MMFX Tube Killer schematic.
Posted: 29 Jul 2009, 14:58
by Dirk_Hendrik
That switchable 4k7 cannot go directly from pin2 to ground (through the switch allright). There must be a cap in between for DC decoupling.
Otherwise I do not see any resemblance to any known circuit on the market
Re: MMFX Tube Killer schematic.
Posted: 29 Jul 2009, 15:38
by culturejam
Hey!! I don't see any tubes!! What gives?
Re: MMFX Tube Killer schematic.
Posted: 29 Jul 2009, 16:45
by Dirk_Hendrik
culturejam wrote:Hey!! I don't see any tubes!! What gives?
Nope.
That's how killed they are. They were there but during months of painstakingly tuning te sound they were found not to be required for the ultimate tone.
Re: MMFX Tube Killer schematic.
Posted: 29 Jul 2009, 17:09
by The Rotagilla
Dirk_Hendrik wrote:That switchable 4k7 cannot go directly from pin2 to ground (through the switch allright). There must be a cap in between for DC decoupling.
Otherwise I do not see any resemblance to any known circuit on the market
You're right, my mistake.
It heads to a 0.1uf and the input cap should be a .047uf, I'll correct it soon.
