Mark Hammer - The Crank

markm · Post by **markm** » 03 Oct 2007, 21:59

Here's a look at the Crank circuit;

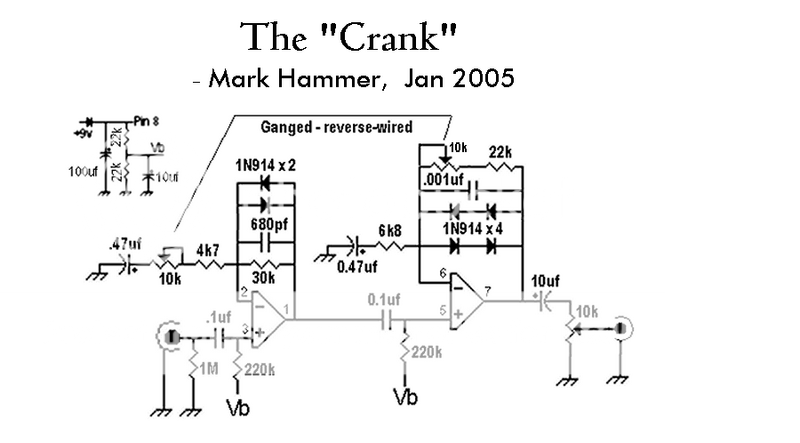

Schem;
https://i17.photobucket.com/albums/b72/ ... kSchem.png

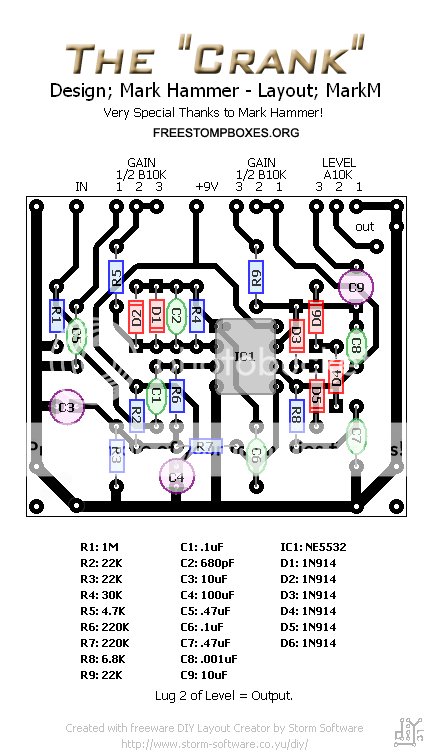

Layout;
https://i17.photobucket.com/albums/b72/ ... YOUT-1.png

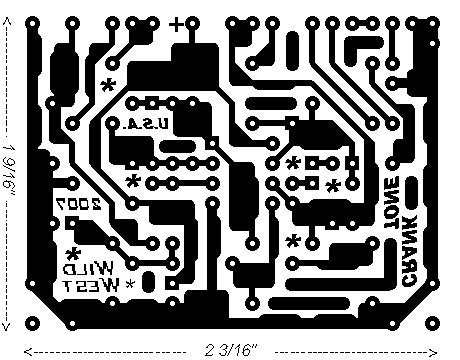

Transfer;
https://i17.photobucket.com/albums/b72/ ... ANSFER.gif

My modded version with the SWTC added to tame some of the highs a bit.
Layout;
https://i17.photobucket.com/albums/b72/ ... YOUT-1.png
Transfer;
https://i17.photobucket.com/albums/b72/ ... ANSFER.gif

Post by **modman** » 04 Oct 2007, 09:36

Isn't that Mark Hammer's take on making a low gain overdrive (Klon, Hotcake?)

Did you build that Mark? How is it?

bajaman · Post by **bajaman** » 04 Oct 2007, 09:45

I built one of these a while back - made everything sound flat and 2 dimensional if you get my drift - not one of my favourites

bajaman

markm · Post by **markm** » 04 Oct 2007, 11:07

bajaman wrote:I built one of these a while back - made everything sound flat and 2 dimensional if you get my drift - not one of my favourites
bajaman

+1
.......or would that be -1?

modman, I don't think it was supposed to be Klon-like which it isn't.
It was supposed to be a blendable light-OD, which it is but, after building it 2 times, + building the version with the TC and trying numerous different op-amps and clipping arrangements, I recycled the components!
