Marshall - Supa Fuzz (196x) [gut shot picture thread]

sinner · Post by **sinner** » 17 Sep 2010, 21:27

I'll get the big ceramic cap sent to you Brook

Scruffie · Post by **Scruffie** » 17 Sep 2010, 21:28

peps1 wrote:Just cloned the later Supa Fuzz (PCB with OC75) for my girlfriend.......though I didnt have any of the HUGE 0.01uf ceramic caps

I've got a bunch of abandoned PCBs with those massive ceramics in, i'll put some in with your Pickups.

And your girlfriend uses fuzz? Now that's awesome

sinner wrote:I'll get the big ceramic cap sent to you Brook

Beat me to it!

peps1 · Post by **peps1** » 17 Sep 2010, 23:55

Scruffie wrote: And your girlfriend uses fuzz? Now that's awesome

She is the real guitar player in the house......im just the geek who makes here peddles when told to, this month she has been demanding the "Jimmy Page" tone!

peps1 · Post by **peps1** » 21 Sep 2010, 22:13

Anyone making Supa Fuzz'ish enclosures?

sinner · Post by **sinner** » 21 Sep 2010, 23:07

There was a guy on evilbuy who I get mine from, but he charges like $70, and the quality is BAD!

Scruffie · Post by **Scruffie** » 21 Sep 2010, 23:14

Closest i'd use would be Pedal Enclosures some nice angled enclosures http://www.pedalenclosures.com/Products ... fault.aspx not the same but, they have a retro charm (Plus for a Gary Hurst Tone Bender there Prism Enclosures would be perfect)

peps1 · Post by **peps1** » 21 Sep 2010, 23:17

sinner wrote:There was a guy on evilbuy who I get mine from, but he charges like $70, and the quality is BAD!

Thats a bit to rich for me, was thinking of doing a Mojo component SF kit......but think I will go without the enclosure!

peps1 · Post by **peps1** » 21 Sep 2010, 23:38

Scruffie wrote:Closest i'd use would be Pedal Enclosures some nice angled enclosures http://www.pedalenclosures.com/Products ... fault.aspx not the same but, they have a retro charm (Plus for a Gary Hurst Tone Bender there Prism Enclosures would be perfect)

Very true, sexy Enclosures!

p.s

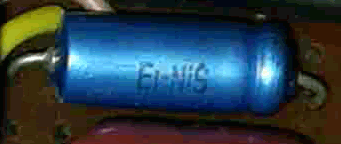

Whos this cap by?

Electric Warrior · Post by **Electric Warrior** » 22 Sep 2010, 00:19

EI Niš

peps1 · Post by **peps1** » 22 Sep 2010, 00:22

Oh Elektronska industrija Niš

Electric Warrior · Post by **Electric Warrior** » 22 Sep 2010, 00:52

yep. Google is your friend

peps1 · Post by **peps1** » 26 Oct 2010, 04:03

Having a bit of a nightmare with this Supa Fuzz build,that was ment to be a gift for about 3 weeks ago so think its time for a little help!

Im using 3 Philips OC75, and have wired them up though the breadboard with matching color to the diagram below (RED= E Yellow=B Green=C) and am going by the Collector being indicated by the red dot on OC75.

Anyone spot anything glaringly obvious, or have suggestions?

oh, and I should say I get the bypass signal no problem but nothing when the effects on.

peps1 · Post by **peps1** » 26 Oct 2010, 05:33

Audio probe results

Green = Audio
Blue= Really really faint
Red= No audio

phibes · Post by **phibes** » 26 Oct 2010, 15:30

Flip your battery wires. You got it set for negative ground, it needs to be positive. It should work like a charm once you do that.

phibes · Post by **phibes** » 26 Oct 2010, 15:34

The diagrams should be changed too to avoid further confusion.

peps1 · Post by **peps1** » 26 Oct 2010, 17:37

Thanks phibes, same thing dawned on me this afternoon......worst of all I knew full well it was a positive ground circuit!

theehman · Post by **theehman** » 26 Oct 2010, 18:10

Might be slightly off topic, but has anyone ever seen a Marshall Fuzz-Reverb unit? I have a schematic at home for one that was sent to me years ago and it's just a Supa Fuzz with a transistorized spring reverb unit after it.

Electric Warrior · Post by **Electric Warrior** » 26 Oct 2010, 18:29

there's two on this thread: http://dam.10.forumer.com/viewtopic.php ... a&start=30

peps1 · Post by **peps1** » 26 Oct 2010, 19:28

phibes wrote:Flip your battery wires. You got it set for negative ground, it needs to be positive. It should work like a charm once you do that.

Switch polarity and it worked for about 5 minuets, though the attack pot did nothing, and now its all stoped working

here are the new probe results

Green = Audio
Blue= Really really faint
Red= No audio

phibes · Post by **phibes** » 26 Oct 2010, 22:02

Post pictures of your wiring again. Sounds like your groundings still off since the attack knob didn't work.
