Thanks Bajaman.
That gives me a better understanding, but I guess I need to do some more study on filters...

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

this may help Xc = 1/(2 x pi x f x C)

where:
Xc is the reactance or equivalent resistance of the capacitor at the frequency f in cycles per second (Hz), and C is the capacitance in farads.
pi = 3.1416 (approximately)

for example: at 100Hz, the equivalent resistance value (impedance) of a 100n capacitor will be 15915.49 ohms ( 16k approx).
at 5kHz the same capacitor will be 50 times smaller or 318 ohms approximately.

Once you know a capacitor's impedance at a specific frequency, you can determine how much it will attenuate or boost the signal level in conjunction with a fixed resistor.
cheers
bajaman

User avatar
analogguru
Old Solderhand
Information
Posts: 3238
Joined: 26 Jun 2007, 13:58
Been thanked: 123 times
Contact:

Post by analogguru »

Here is a table for the most values:

http://analogguru.an.ohost.de/techstuff/Reactance.htm

analogguru
There´s a sucker born every minute - and too many of them end up in the bootweak pedal biz.

User avatar
modman
a d m i n
Information
Posts: 4817
Joined: 19 Jun 2007, 16:57
Has thanked: 4287 times
Been thanked: 2008 times

Post by modman »

bajaman wrote:
Maybe someone could talk me through it (10k, 82n and 1k) ??
Normally the 100k feedback resitor would be connected between the output terminal and the inverting input terminal of the opamp.
Varying the resistance between the inverting input and ground ( via the series capacitor to block dc bias and set low frequency gain structure), will increase or decrease the op amp stage gain in a high pass fashion.
Okay - here is the trick :wink:
We connect a series chain of 10k, 1k, and 82n from the op amp output to ground. This combination provides a variable frequency reactive filter on the output of the op amp.
At low frequencies - say 100hz, the 82n capacitor's impedance will be 19.4k ohms.
At high frequencies - say 10khz, it's impedance will be 194 ohms!!!
So - at high frequencies only 10% of the op amp's output signal voltage appears at the 100k feedback resistor, but at low frequencies 67% of the op amp's signal voltage appears at this point.
Because less feedback of signal is available at high frequencies, as the gain is increased the op amp goes into slew rate induced distortion a lot quicker at high frequencies than at low frequencies - this accounts for the clarity in the low end response when driven hard - the fundamental remains reasonably clean compared to the distorted top end response.
cheers
bajaman

Today I tried the 8k2 -150nF -560R suggestion for R8 - C6 - R10 which indeed might the XLF version, and it brings in more bass distortion earlier. But a lot depends on the action of the drive pot -- and as I didn't have the 50kC pot, I used a 100kB with 100k across the wiper/outer lug which should give me as perfect an antilog 50k (relative to the linearity).

This didn't give me a taper useful for gradually dialing in gain -- I finally settled for 20kB by ear. To my surprise this value is mentioned somewhere in this thread. :D

I then used 12k - 68nF -1k3 as an inituitive extrapolation, and this at t least sounded more bluesy to me. Berry or not, it also permits settings in which you put the overdrive on the bottom strings (G-B-E) only. I did use 27nF instead of 22nF for C5. Drive maxxed out still produces that fuzzy, trebledead tone that might be useful for some leads, but at lower drive settings it's your perfect modern rangemaster. Or what people think a treble booster does,

Distortion for the rhythm guitarist with great "ka ching". I guess you can tell I like this circuit
:lol:

more later!
Please, support freestompboxes.org on Patreon for just 1 pcb per year! Or donate directly through PayPal

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

Hi Modman - yes, there are a lot of hidden sounds in the hot cake, which can be found by variations of a few component values :wink: :D .
try different values for the capacitor in series with the gain control too!!! :wink:
cheers
bajaman

User avatar
phantasm
Information
Posts: 3
Joined: 20 Feb 2008, 22:13

Post by phantasm »

Does anyone have any idea what the differences in this pedal are for the "bass version?"

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

Does anyone have any idea what the differences in this pedal are for the "bass version?"
Now that the designer is here on this board (PEC) - it would be far better for him to comment on this
cheers
bajaman
be kind to all animals - especially human beings

User avatar
Deric
Breadboard Brother
Information
Posts: 74
Joined: 04 Oct 2007, 03:04
Been thanked: 2 times

Post by Deric »

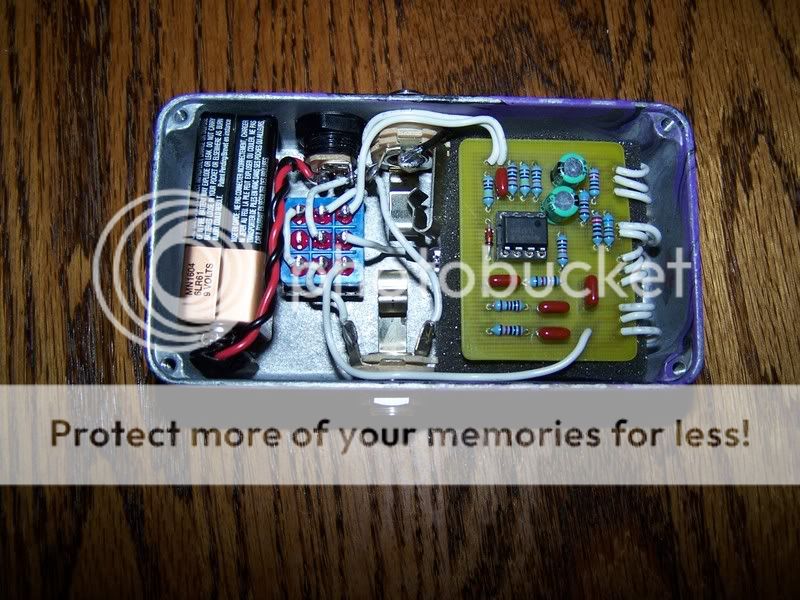

Built this today...

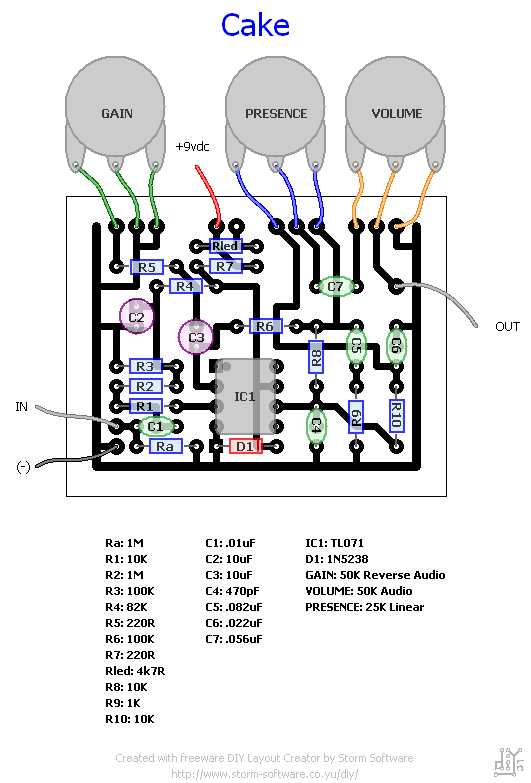

...from this layout I did some time ago...
Sounds very good....except, there is a very subtle gatey sound to the decay. This only happens in a small part of the gain pot rotation - just above halfway. If you turn the gain up or down it goes away. Tried an OPA134 and, if anything, it was worse. Double checked the layout and parts values in the pedal and all seems good.

Is this normal? Maybe some fresh eyes will see something I'm missing. :oops:
Try not to be a dick when speaking about others; try not to be pussy when others are speaking of you.

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

sounds like a parasitic oscillation problem - try placing a 22pf capacitor in parallel with the 100k feedback resistor - that should shut it up!!!
cheers
bajaman
be kind to all animals - especially human beings

User avatar
Deric
Breadboard Brother
Information
Posts: 74
Joined: 04 Oct 2007, 03:04
Been thanked: 2 times

Post by Deric »

Thanks for the suggestion. Tried this tonight with no noticable change. Overall it sounds very good - it just has what I would call an "ugly" decay. I noticed tonight that this really happens all thru the range of the gain pot, it's just easier to notice at certain settings. At the very end of the note decay, it gets slightly splatty or gated sounding - this is very subtle - but it's definately NOT a smooth decay.

It also seems VERY compressed - not sure if this is normal or not.

IC voltages - Battery = 9.22v
pin 2 = 4.75v
pin 3 = 4.34v
pin 6 = 4.75v
pin 7 = 8.7v
Try not to be a dick when speaking about others; try not to be pussy when others are speaking of you.

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

about the farting decay, i noticed the same thing as deric... overall, i really like this pedal, it reminds me a lot of the BD-2 but livelier, i only need to tame the lower frequencies in it, where the BD-2 sounds a tad thin (but has better decay and cleans up better), the HC sound too bassy, i'm not sure if i should lower the input cap or output cap?

if i could just tighten the bass it would be a killer!

User avatar
modman
a d m i n
Information
Posts: 4817
Joined: 19 Jun 2007, 16:57
Has thanked: 4287 times
Been thanked: 2008 times

Post by modman »

blanik wrote:about the farting decay, i noticed the same thing as deric... overall, i really like this pedal, it reminds me a lot of the BD-2 but livelier, i only need to tame the lower frequencies in it, where the BD-2 sounds a tad thin (but has better decay and cleans up better), the HC sound too bassy, i'm not sure if i should lower the input cap or output cap?

if i could just tighten the bass it would be a killer!
Hi Blanik welcome,

The HC doesn't handle the max gain well, but you should be able to tame the bass with the gain control. Else you can tingle with the selective feedback circuit like I did (at Bajaman's suggestion) you should be able to tame the bass even more.
modman wrote:
bajaman wrote:
Maybe someone could talk me through it (10k, 82n and 1k) ??
Normally the 100k feedback resitor would be connected between the output terminal and the inverting input terminal of the opamp.
Varying the resistance between the inverting input and ground ( via the series capacitor to block dc bias and set low frequency gain structure), will increase or decrease the op amp stage gain in a high pass fashion.
Okay - here is the trick :wink:
We connect a series chain of 10k, 1k, and 82n from the op amp output to ground. This combination provides a variable frequency reactive filter on the output of the op amp.
At low frequencies - say 100hz, the 82n capacitor's impedance will be 19.4k ohms.
At high frequencies - say 10khz, it's impedance will be 194 ohms!!!
So - at high frequencies only 10% of the op amp's output signal voltage appears at the 100k feedback resistor, but at low frequencies 67% of the op amp's signal voltage appears at this point.
Because less feedback of signal is available at high frequencies, as the gain is increased the op amp goes into slew rate induced distortion a lot quicker at high frequencies than at low frequencies - this accounts for the clarity in the low end response when driven hard - the fundamental remains reasonably clean compared to the distorted top end response.
cheers
bajaman
Today I tried the 8k2 -150nF -560R suggestion for R8 - C6 - R10 which indeed might the XLF version, and it brings in more bass distortion earlier. But a lot depends on the action of the drive pot -- and as I didn't have the 50kC pot, I used a 100kB with 100k across the wiper/outer lug which should give me as perfect an antilog 50k (relative to the linearity).

This didn't give me a taper useful for gradually dialing in gain -- I finally settled for 20kB by ear. To my surprise this value is mentioned somewhere in this thread. :D

I then used 12k - 68nF -1k3 as an inituitive extrapolation, and this at t least sounded more bluesy to me. Berry or not, it also permits settings in which you put the overdrive on the bottom strings (G-B-E) only. I did use 27nF instead of 22nF for C5. Drive maxxed out still produces that fuzzy, trebledead tone that might be useful for some leads, but at lower drive settings it's your perfect modern rangemaster. Or what people think a treble booster does.
@Deric:
Only built this from Torchy's layout, an do not know for sure whether that layout was verified. Do report back whatever your findings are.

modman
Please, support freestompboxes.org on Patreon for just 1 pcb per year! Or donate directly through PayPal

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

hi, modman, thanks for the tip, i tried it and it was really interesting to experiment with 10k, 1k, 82n to clean up the lower frequencies but it's not what i was looking for, even clean the bass frequencies are "boosted" and sloppy, i'm really trying to get it closer to the BD-2 by thightening the bass (throughout the drive settings) by cranking the amp in a live setting, the bass will come through but thighter, i guess i should try to set a cap (input C1 or C7 on Torchys layout) to get a cut at about 100Hz (how can i find where the BD-2 cuts off?)

r.

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

Try reducing the electrolytic capacitor in series with the drive potentiometer - try half the value - that should tighten the bass for you - leave the input coupling capacitor as it is though!!
cheers
bajaman
be kind to all animals - especially human beings

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

thanks bajaman, i'll do that first thing when i get up tomorrow! (right now my neighbors would kill me if i'd do that... :twisted: )

i'll try a 4.7uF

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

i tried it and the C5 to 27n instead of 22n (like suggested by to no avail, it still has too much bass freq like suggested by modman (to get in rangemaster territory) i'm wondering about the relation between C4 and C6

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

i put the values back to stock but changed the input cap from 0.01 to 0.0036, neat improvement, still a little muddy, i'll also shrink C7 to a lower value (output cap)

what part of the circuit cuts the high frequencies?

User avatar
bajaman
Old Solderhand
Information
Posts: 4512
Joined: 26 Jun 2007, 21:18
Location: New Brighton, Christchurch, NZ
Has thanked: 566 times
Been thanked: 2014 times

Post by bajaman »

what part of the circuit cuts the high frequencies?
try increasing the 470pf capacitor - try double the value.
cheers
bajaman
be kind to all animals - especially human beings

User avatar
blanik
Solder Soldier
Information
Posts: 242
Joined: 04 Mar 2008, 17:10
Location: Montreal
Been thanked: 6 times

Post by blanik »

i finally got a sound i love by changing the input cap (C1) to 0.039uF and the output cap (C7) to 0.022uF i think the output cap change made the biggest difference (i'll try putting C1 back to 0.01 and keeping the C7 at 22nF to see if the input has anything to do with the sound i got after i changed the C7)

really sound like a better BD-2 now :thumbsup

User avatar
modman
a d m i n
Information
Posts: 4817
Joined: 19 Jun 2007, 16:57
Has thanked: 4287 times
Been thanked: 2008 times

Post by modman »

blanik wrote:i finally got a sound i love by changing the input cap (C1) to 0.039uF and the output cap (C7) to 0.022uF i think the output cap change made the biggest difference (i'll try putting C1 back to 0.01 and keeping the C7 at 22nF to see if the input has anything to do with the sound i got after i changed the C7)

really sound like a better BD-2 now :thumbsup
Just out of curiosity, at what setting do you have the drive/gain control? Up till now, nobody really much cared for the HC at higher maximum gain, where it turns fuzzy.
